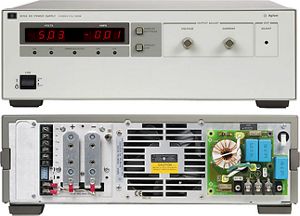

Agilent / HP / Keysight 6010A

6010A 1200W DC System Power Supplies, No Interface, Single Output

Please help us customize your browsing experience, by selecting one the below.

Description

This unit is part of the 601x series of autoranging power supplies which provide maximum power over a wide range of voltage and current combinations without having to manually select the proper output range.

Key Points

Auto ranging outputs provide maximum power at a variety of operating points

Over voltage features protect DUTs quickly and automatically

Auto-parallel or auto-series connections enable greater output flexibility

Ten turn pots for precise local control

Specifications

Max power: 1200W

Line Regulation: 10mA

Load Regulation V/C: 22mV - 15mA

Other Features: 5mV

Output 1,Volts/ Max. Current: 200 Volts - 17 Amps

Type: DC - Single Out

Size WxHxDx (mm): W=426, H=133, D=427
