Agilent / HP / Keysight 54831D

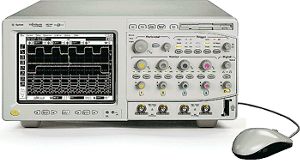

54831D 4+16-Channel, 600 MHz Mixed-Signal Infiniium Oscilloscope

Note: Federal Resellers, We Do Not Sell New Equipment.
  • 90 Day Warranty Included
  • 21 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This Mixed Signal Oscilloscope (MSO), with 4 scope channels and 16 timing channels, uniquely combines the detailed signal analysis of a scope with the multi channel timing measurements and triggering of a logic analyzer.

Digital and analog events are aligned in time so you can easily relate cause and effect in difficult mixed signal, digital and analog troubleshooting situations.

This unit also incorporates Agilent´s innovative MegaZoom technology, that provides fast waveform update rates and instant response, even with the deepest memory being acquired.

Mixed signal triggering provides a complete set of triggering features across all 16 timing channels and 4 scope channels.

Key Points

Integrated 4 scope and 16 timing channels

600MHz bandwidth

Up to 4GSa/s sample rate

Up to 128Mpts optional memory, also available as after purchase upgrades

Standard 4Mpts memory

Simple, analog like front panel with Windows ® GUI

Web enabled remote control and email on trigger

Specifications

Frequency Range/ Bandwith: 600MHz

Number of Channels: 4 + 16Ch

Record Length: 4Mpts

Sample Rate: 4GSa/s

Type (D/A): Mixed signal
