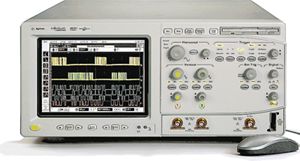

Agilent / HP / Keysight 54830D
54830D 2+16 Channel, 600 MHz Mixed-Signal Infiniium Oscilloscope
Description
This oscilloscope uniquely combines the detailed signal analysis of a scope with the multi channel timing measurements and triggering of a logic analyzer.
Digital and analog events are aligned in time so you can easily relate cause and effect in difficult mixed signal, digital and analog troubleshooting situations.
Now with the N5397A FPGA Dynamic Probe, the 16 logic channels can be used to look inside your FPGA.
This unit also incorporates Agilent's innovative MegaZoom technology, now available up to an unprecedented 128Mpts, that provides fast waveform update rates and instant response, even with the deepest memory being acquired.
Mixed signal triggering provides a complete set of triggering features across all 16 logic timing channels and 2 scope channels.
Key Points
Integrated 2 scope and 16 timing channels
600MHz bandwidth
Up to 4GSa/s sample rate
Up to 128Mpts optional memory, also available asafter-purchase upgrades
Standard 4Mpts memory
Simple, analog like front panel with Windows® GUI
Time correlation for the 16900/16700/1680/1690 series logic analyzer and scope
Web enabled remote control and email on trigger
Specifications
Frequency Range/ Bandwidth: 600MHz
Number of Channels: 2 + 16Ch
Record Length: 4Mpts
Sample Rate: 4GSa/s
Type (D/A): Mixed signal
