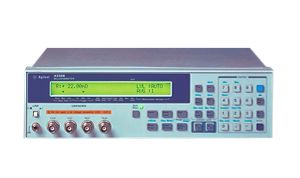

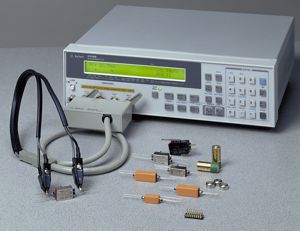

Agilent / HP / Keysight 4338B
4338B Milliohmmeter, 1 kHz
Description
This unit is ideal for precise measurements of extremely low resistances using an AC test signal, this suits bench-top applications that require flexible testing and reliable results.
The milliohm meter satisfies system throughput demands for fast, high-quality measurements.
Key Points
Test current levels:
Low and selectable test signal current: 1uA to 10mA
Measurement Range / Time:
Wide measurement range: 10u ohm to 100k ohm
High-speed measurement: 34ms
Frequency:
1KHz ac measurement
More Features:
10u ohm resolution
Contact check function
Built-in comparator
Auto-measurement mode
Specifications
Test frequency: 1KHz
Impedance parameter sets: R, IZI-θ, R-L, R-X
Basic accuracy: 0.4%
Test current levels: 1μA, 10μA, 100μA, 1mA, 10mA
Error correction: Short compensation
Display digits: 3, 4, or 5 digits (selectable)
Save/recall: 10 instrument states
Interfaces: GPIB and handler interface
