Agilent / HP / Keysight 34942A

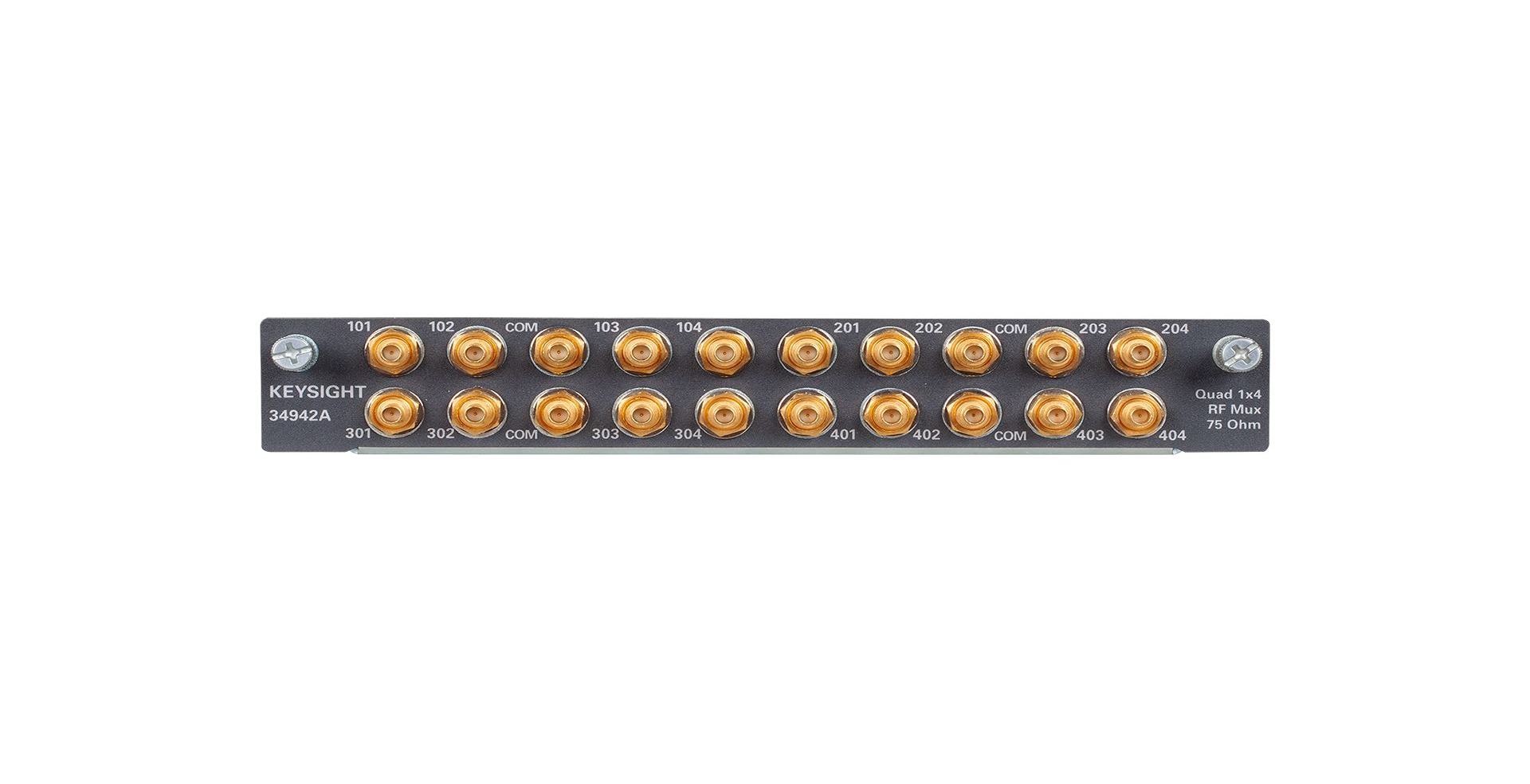

34942A Quad 1x4 75 Ohm 1.5 GHz Multiplexer Module for 34980A
Description
This Multiplexer module is for the 34980A Multifunction Switch/Measure Unit offers bi directional switching broadband signals.
High channel isolation ensures quality dynamic range measurements with your oscilloscope, spectrum analyzer, or other instrumentation.
The RF multiplexers are configured as four independent 1x4 RF multiplexers on a single module.
Individual multiplexers are isolated from each other and the Mainframe chassis to prevent ground loops.
Multiple banks can be cascaded together to create an even larger multiplexer up to 97 cascaded RF channels in a single 34980A Mainframe.
Key Points
Quad 4 channel multiplexers
DC to 1.5GHz, 75ohms
High isolation, low VSWR
30V, 0.5A, 10W switching
75ohms mini SMB connectors
Specifications
Frequency Range: DC to 1.5GHz
Number of Channels: 4
Impedance: 75ohms
