Agilent / HP / Keysight 34907A

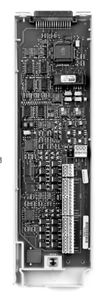

34907A Multifunction Module for 34970A/34972A
Description
This unit is for the 34970A Data Acquisition/Switch Unit allows great flexibility for a variety of sense and control applications.
It combines two 8 bit ports of digital input and output, a 100KHz gated totalizer, and two ±12V analog outputs - all on a single earth referenced module.
The digital inputs and totalizer input may be included in a scan.
The alarm limits for the digital and event counter inputs are evaluated continuously, capturing and logging alarm conditions even between scans.
Key Points
16 bits of digital input and output
100KHz totalizer input
Two +/-12V analog outputs
Specifications
Alarm: Yes, Digital and event controlled
Card Function: Multifunction
Form Factor: Plug-in
Interface Type: Multifunction Module
Maximum Input Ratings: 42V PK - Totalize Input & Digital I/O
Output Voltage: Analog DAC 1 & 2, +/- 12V @ 10MA Max
Output Voltage Accuracy: 0.25% + 20MV
Plug-in, Requires Mainframe: Yes, 34970A
Totalizer Max Count: 2^26 - 1, TTL Compatible
