Agilent / HP / Keysight 34905A

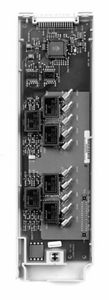

34905A 2 GHz Dual 1:4 RF Mux, 50 Ohm Module for 34970A/34972A
Description
This unit is a RF multiplexer module for the 34970A Data Acquisition/Switch Unit that offers broadband switching capabilities for high-frequency and pulsed signals.
You can use it to route test signals between your device under test and your signal generator, oscilloscope, spectrum analyzer, or other instrumentation.
The RF multiplexers are arranged as two independent 1 x 4 multiplexers, each with a common shield and a switched center conductor.
Connections can be made directly to SMB inputs with 2GHz usable bandwidth, or to the BNC-to-SMB adapters provided with 1GHz bandwidth.
Multiple banks may be cascaded together for applications requiring even larger topologies-- create a stubless 16:1 multiplexer in a single frame.
Key Points
Dual 4 Channel RF Multiplexer
2GHz bandwidth, 50ohm
BNC to SMB adapter cables included
Specifications
DC Volts Range Min/Max: 42V
Max Channels: 4
Measurement Parameter: "Current,Po"
