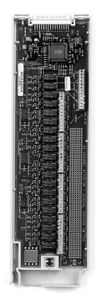

This unit is a general-purpose switch module for the 34970A Data Acquisition/Switch Unit.
It has 20 independent single-pole, double-throw (SPDT) relays and is used to cycle power to products under test, control indicator and status lights, and to actuate external power relays and solenoids.
You can combine it with matrix and multiplexer modules to build custom switch systems.
Its 300V, 1A contacts can handle up to 50W, enough for many power line switching applications.
20 Channel Actuator/GP Switch.
SPDT (Form C) latching relays.
300V, 1A actuation and control.
Frequency Range Min/Max: 300V
Max Channels: 20
Measurement Parameter: "Current,Po"
