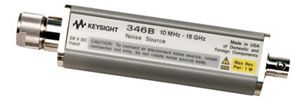

Agilent / HP / Keysight 346B

346B Noise Source, 10 MHz to 18 GHz, nominal ENR 15 dB

Please help us customize your browsing experience, by selecting one the below.

Description

The Agilent / HP 346B noise source is designed for a broad range of measurement applications. The Agilent / HP 346B noise source works in the frequency range of 10 MHz to 18 GHz.

The Agilent / HP 346B eliminates the necessity for several sources at different frequency bands which has individual calibrated ENR values at specific frequencies.

The low SWR of Agilent / HP 346B noise source reduces a major source of measurement uncertainty reflection of test signals. In addition, the variety of available connectors reduces the need for degrading accuracy with connector adapters.

The Agilent / HP 346B Option H01 has high ENR (21 dB typical), suitable for measuring high noise figure devices.

The Agilent / HP 346B Option H42 was developed especially to test low noise block converters used for Direct Broadcast Satellite. WR75 waveguide output, 5 dB ENR calibration uncertainty, and low SWR improve the noise figure measurement accuracy of DBSLNBs.

Key Points

Low SWR for reducing noise figure (NF) measurment uncertainty

Individually calibrated ENR values at specific frequencies to enhance accuracy

Specifications

Frequency Range: 10.0 MHz - 18.000 GHz

Noise Figure Range: 14 dB - 16 dB

Power required: 28 ±1 Vdc

Connectors: BNC (f) input bias / 3.5mm (m)

Size: 21 mm W x 140 mm H x 30 mm D

Weight: Net, 0.108 kg; shipping, 0.5 kg
