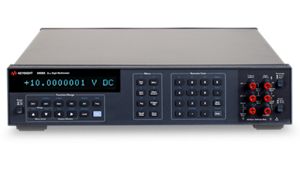

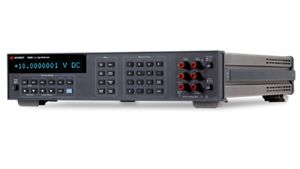

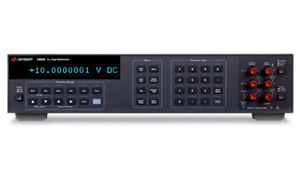

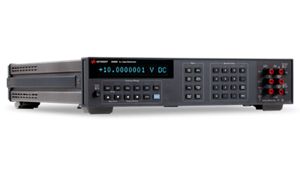

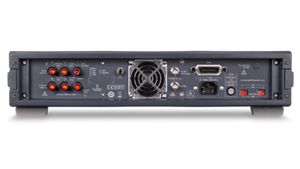

Agilent / HP / Keysight 3458A
3458A Digital Multimeter, 8.5 Digit
This unit shatters long standing performance barriers of speed and accuracy on the production test floor, in R&D, and in the calibration lab.
This unit is the fastest, most flexible, and most accurate multimeter ever offered by Agilent Technologies.
You can select a reading rate of 100,000 readings per second for maximal test throughput.
Or achieve highest levels of precision with up to 8.5 digits of measurement resolution and 0.1 parts-per-million transfer accuracy.
This is the ideal multimeter for your most demanding applications.
8½ digits at 6 readings per second
100,000 readings per second at 4½ digits Math/statistics
20kB memory / 128kB optional (Option 001) " GP-IB
8ppm one year accuracy
4ppm optional (Option 002)
10nV sensitivity 100,000 readings/sec reading rate
0.05ppm transfer accuracy
0.014% one year accuracy -
1Hz to 10MHz bandwidth
3 AC measurement modes
0.001% 1 year accuracy
10 uOhm sensitivity
2 and 4 wire with offset compensation
AC Current: 100uA - 1A
AC Voltage Range: 10mV - 1000V
DC Current: 100nA - 1A
DC Voltage Range: .1V - 1000V
Frequency Range: 1Hz - 10MHz
Number of Digits: 4.5 - 8.5
Resistance Range: HP-IB - 1Gohm
