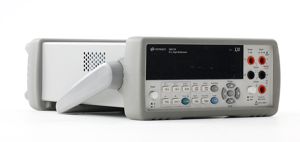

Agilent / HP / Keysight 34411A
34411A Digital Multimeter, 6½ Digit
The 34411A 61/2 Digit DMM belongs to the latest generation of multimeters from Agilent Technologies.
The new 34411A meter offers improved accuracy, expanded measurement capability, dramatically improved measurement speed and throughput, and modern computer interfaces including LAN and USB as it has been built on the phenomenal success of the industry-standard Agilent 34401A.
The dual display of the 34401A offers both dual measurement capabilities and ease of use when setting up and configuring the DMM.
In addition to those measurements you have come to expect, such as DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Continuity and Diode Test, the 34411A offers Temperature and Capacitance capabilities.
The 34411A has all the features of the 34410A, plus additional performance that makes it even more powerful. With the ability to make 50,000 readings per second at 41/2 digits, Analog Level Triggering, programmable Pre- and Post- Trigger and 1 million readings of volatile memory in addition to 50,000 reading of non-volatile memory, provides the ability to capture low-frequency waveforms, characterize device performance and transfer results for analysis on your computer.
A front panel data logger function allows the user to set the meter up to make unattended, paced measurements over a fixed time or number of events, then pull up the results later for review or transfer to a computer for analysis.
Agilent 34411A has a built-in Graphical Web Interface that provides the user interactively control the DMM without the hassle of programming at all.
Agilent’s I/O Library Suite ships with the 34411A to help you quickly establish an error-free connection between PC and instrument. It provides robust instrument control and works with the software development environment of your choice.
LAN Extensions for Instruments (LXI) provides the next generation I/O for system applications requiring the highest throughput. Transfer rates of well over 100,000 readings/sec are attainable ensuring even the most data intensive measurements
are fast, without the overhead cost of an instrument cardcage. The 34411A have
been designed for LXI - Class C compliance.
6½ digit resolution.
50,000 readings/sec. @ 4 1/2 digits to the PC.
1M reading memory.
Analog level and pre/post triggering.

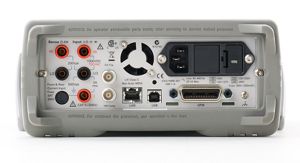

LAN, USB & GPIB standard.
Capacitance & temperature measurements.
Data logger for improved usability.
50,000 reading non-volatile memory.
LXI Class C Compliant.
AC Current: 100uA - 3A
AC Voltage Range: 100mV - 750V
DC Current: 100uA - 3A
DC Voltage Range: 100mV - 1000V
Frequency Range: 3Hz - 300KHz
Interface: LAN, USB - GPIB
Number of Digits: 6.5
Resistance Range: 100ohm - 1Gohm
