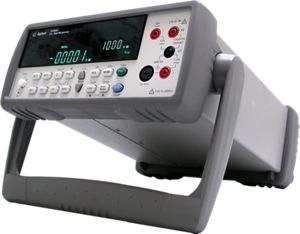

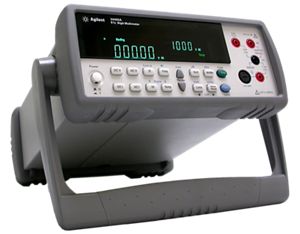

Agilent / HP / Keysight 34405A
34405A Digital Multimeter, 5½ digit
The Agilent 34405A is the latest member in its DMM family and this expands Agilent’s offerings in the electronics measurement tools.
Agilent 34405A Multimeter is versatile and low cost solution for benchtop testing.
Agilent provides a broad range of features and measurement functions such as DC voltage, DC current, true-RMS AC voltage and AC current, 2-wire resistance, frequency, diode test and continuity which are designed to meet general industrial needs.
A built-in thermistor sensor is able to measure temperature ranging from -80 to 150 deg C.
The 34405A is more evident with its capability to measure capacitance ranging from 1000pF to 10000mF.
Agilent 34405A also improves efficiency and accuracy with its 6 built-in math operations: Null, dBm, dB, MinMax, Limit and Hold.

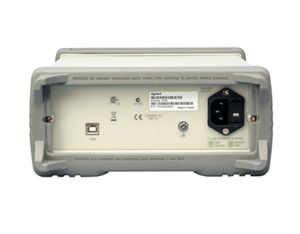

The 34405A provides a quick connection to the PC with USB 2.0 Interface for those with a need to control and take preset measurements.

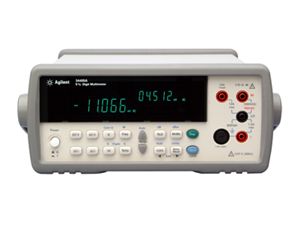

Agilent 34405A The VFD dual display feature of Agilent 34405A allows users to take more than one measurement and display them simultaneously on the front panel when high throughput and productivity are the priority.
Agilent 34405A can take up to 19 readings/sec at 4.5 digits resolution directly to the PC for speed critical applications.
The 34405A is designed and tested according to major Safety and Regulatory Standards. In addition, the shock absorbing bumpers is designed to prevent physical damage from your day-to-day use.
The SCPI language compatibility makes it easy to migrate from your existing test setup.
120000 counts resolution
16 measurement functions including temperature and capacitance
0.025% DC voltage accuracy
USB 2.0 interface (TMC-488.2 Compliance)
SCPI language compatible
Comes with DMM Intuilink data logging software
Power supply: 100V/120V(127V)/220V (230V)/240V ±10%
AC line frequency: 45Hz - 66Hz and (360Hz - 440Hz, 100V/120V operation)
Power consumption: 16VA max, 11W average
AC Current: 10mA - 10A
AC Voltage Range: 100mV - 750V
DC Current: 10mA - 10A
DC Voltage Range: 100mV - 1000V
Frequency Range: 2Hz - 300KHz
Interface: USB 2.0 - USB TMC (GPIB over USB)
Number of Digits: 5.5
Resistance Range: 100 ohms - 100 M ohms
Operating temeperature: Full accuracy at 0 to 55 deg C, Full accuracy to 80% RH at 30 deg C non-condensing), Altitute up to 3000 meters
Storage Temperature: - 40 to 70 deg C
Dimensions (HxWxD): Rack - 88.5mm x 212.6mm x 272.3mm, Bench - 103.8mm x 261.2mm x 303.2mm
Weight: 3.75 kg, 8.27 lb
