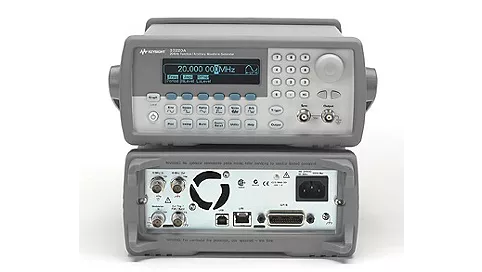

Agilent / HP / Keysight 33220A

33220A Function / Arbitrary Waveform Generator, 20 MHz

Please help us customize your browsing experience, by selecting one the below.

Description

This unit is a full-featured 20MHz Function/Arbitrary Waveform Generator with pulse capabilities. It provides a wide variety of waveforms including pulse, and also arbitrary waveforms with 14 bit resolution, 64K memory depth, and a sample rate of 50MSa/s. In addition, this unit has sweep, burst, and modulation capabilities. With standard I/O such as GPIB, USB, and LAN, the 33220A is perfectly suited for stand-alone bench and system applications. This units performance, unique combination of features, and low price set it apart from the competition.

Key Points

20MHz sine and square waves

Arbitrary waveforms (14 bit, 64K points 50MS/s)

IntuiLink connectivity software

USB, GPIB and LAN interfaces

LXI Class C compliant

Specifications

20MHz sine and square waveforms

Ramp, triangle, noise, and DC waveforms

Pulse generation with variable edge

14 bit, 50MSa/s, 64Kpoint arbitrary waveforms

AM, FM, PM, FSK, and PWM modulation types

Linear & logarithmic sweeps and burst operation modes

Graph mode for visual verification of signal settings

IntuiLink software plus USB, GPIB and LAN interfaces included

Option 001 provides multiple-unit link for synchronous channels

LXI Class C Compliant
