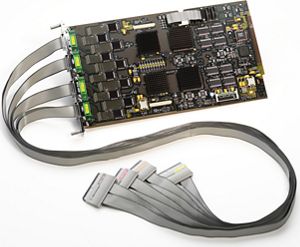

Agilent / HP / Keysight 16950A

16950A 68 Channel 4 GHz Timing/600 MHz State Logic Analysis Module

Note: Federal Resellers, We Do Not Sell New Equipment.
  • 90 Day Warranty Included
  • 21 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

The Agilent/HP 16950A timing and state analysis module offers 4 GHz high speed timing analysis and state speeds up to 600 MHz. The software upgradeable acquisition memory allows you to upgrade your acquisition hardware as your needs evolve. Used with the fully modular and customizable 16900 Series logic analyzer mainframes, this logic analyzer system offers the performance, features, and functionality needed to debug and validate today's digital systems easily and accurately.

Key Points

Comprehensive single ended threshold support

Eyefinder automatically adjusts setup and hold for accurate measurements on high speed buses

Eye scan mode provides rapid multi channel signal integrity characterization

Specifications

Timing Analysis (Asynchronous Sampling):
timing zoom:4 GHz (250 ps)
memory: 64 K
conventional timing :1.2 GHz / 600 MHz (half / full-channel)
transitional timing: 600 MHz
State Analysis (Synchronous Sampling):
State clock rate max.:600 MHz
Data rate max: 800 Mb/s
memory depth max.: 64 M
No. of channels: 68
