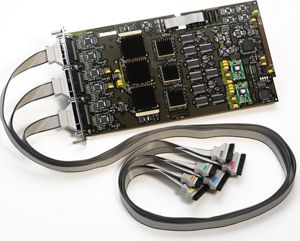

Agilent / HP / Keysight 16910A
16910A 102-Channel 4 GHz Timing/250 MHz State Logic Analysis Module
Description
The Agilent 16910A timing and state analysis module offers 4 GHz high speed timing analysis and state speeds up to 450 MHz. The software ugradeable acquisition memory and state speed allows you to upgrade your acquisition hardware as your needs evolve. Used with the fully modular and customizable 16900 Series logic analyzer mainframes, this logic analyzer system offers the perfomance, features, and functionality needed to debug and validate today's digital systems easily and accurately.
Key Points
102 channels
4 GHz (250 ps) timing zoom with 64K memory depth
500 MHz / 1 GHz (full / half-channel) conventional timing with deep memory
500 MHz transitional timing
Selectable memory depths of 256K, 1M, 4M, 16M, or 32M.
Supports clock rates up to 250 MHz or 450 MHz
Supports data rates up to 250 Mb/s or 500 Mb/s
Comprehensive single-ended threshold support (-5V to 5V in 10 mV increments)
Eyefinder automatically adjusts setup and hold for accurate measurements on high-speed buses
Specifications
Channels per module:102
Max channels on a single timebase and trigger:510
Memory depths: up to 32M
High speed timing rate:4 GHz (250 ps) with 64 K depth
Max deep memory timing sample rate (half/full channel):1.0 GHz (1.0 ns)/500 MHz (2.0 ns)
Transitional timing:500 MHz (2.0 ns)
