Agilent / HP / Keysight 1683AD

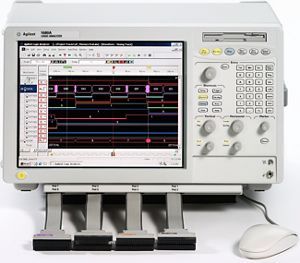

1683AD Standalone Logic Analyzer
Description
800 MHz timing with 4 M deep memory enables you to find the root cause of a problem that is widely separated from the symptom in time.
200 MHz state acquisition provides you performance and headroom for synchronous system measurements.
Simple and Quick triggers let you define triggers in the context of the signals you're viewing.
Use pull-down menus within data displays to define trigger events as edges, patterns and glitches (Simple trigger) or draw a box around a suspect event in the display to see if it reoccurs (Quick trigger).
Advanced trigger lets you use drag-and-drop graphical icons as building blocks to customize complex trigger scenarios to find the most elusive problems.
Time correlated measurements between an external oscilloscope and the logic analyzer help you determine how the analog quality of a signal impacts the digital operation of your device.
Offline analysis allows you to analyze previously captured data on a Windows PC leaving your logic analyzer free to capture additional data.
12.1-inch built-in color flat panel display allows you to see more data and gain insight quickly.
34 channel standalone logic analyzer.
Key Points
34-channel portable logic analyzer
800 MHz / 400 MHz (half/full-channel) conventional timing, 4 M / 2 M memory depth
200 MHz transitional timing, 1 M memory depth
200 MHz state analysis, 1 M memory depth
