Agilent / HP / Keysight 1681A
1681A Standalone Logic Analyzer
Description
The Agilent 1681A 102-channel logic analyzer provides 800 MHz timing and 200 MHz state.
The standalone fixed configuration provides a small footprint with excellent price for performance.
The award winning Windows®-based user interface takes the complexity out of making logic analyzer measurements.
User Interface Familiar MS-Windows interface provides efficient and easy-to-use single-screen operation.
Offline analysis allows you to analyze previously captured data on an MS-Windows PC Integrated Oscilloscope Correlate analog and digital data acquisitions by connecting your logic analyzer to an Infiniium oscilloscope with the Agilent E5850A Time Correlation Fixture.

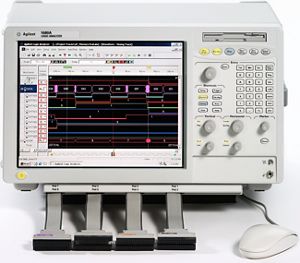

Form Factor Self-contained benchtop instrument with a small footprint, built-in front panel controls, and a large 12.1-inch color flat panel display.
Probing cables can be conveniently accessed from the front or back of the instrument
Key Points
102-channel portable logic analyzer
800MHz / 400MHz (half/full-channel) conventional timing, 1M / 512K memory depth
200MHz transitional timing, 256K memory depth
200MHz state analysis, 256K memory depth
