Agilent / HP / Keysight 1680A

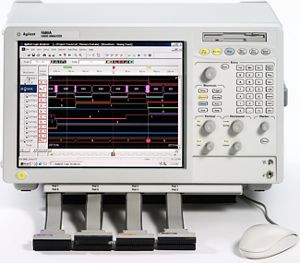

1680A Standalone Logic Analyzer
Description
The award-winning 1680 Series standalone and 1690 Series PC-hosted logic analyzers simplify complex logic analysis measurements in a remarkably intuitive, easy-to-navigate Windows®-based environment.
These affordable logic analyzers offer a variety of channel counts, memory depths, and form factors, giving you the flexibility to choose a model that matches your work style, application, and budget.
Key Points
136-channel logic analyzer
Measurement modes: speed, memory depth: State: 200 MHz, 256 k standard, Timing: 800 MHz/400 MHz (half channel/full), 1 M/512 K (half channel/full), Transitional timing: 200 MHz, 256 K standard
Large 12.1-inch color flat panel display
Display shows up to 32 waveforms on screen simultaneously
Familiar Windows®-based user interface
Perform all operations directly from one window
Cable flexibility, front or back
Front panel knobs and hot keys
Includes a mouse, mini keyboard, front panel cover and accessory pouch
Specifications
State Acquisition: 800MHz
