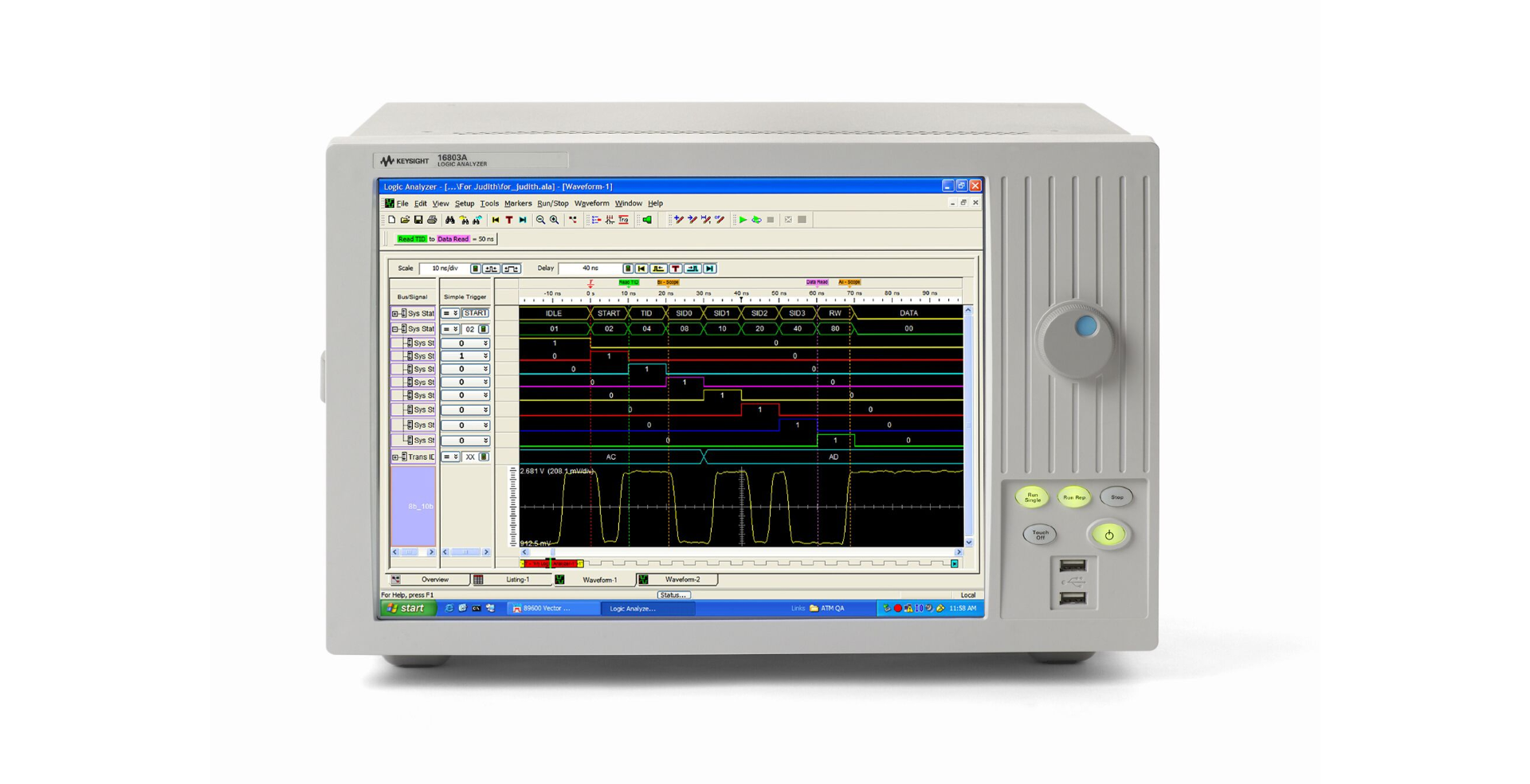

Agilent / HP / Keysight 16806A
16806A 204-Channel Portable Logic Analyzer
Description
This Logic Analyzer lets you make accurate high speed timing measurements with 4GHz (250ps) high speed timing zoom.
A parallel acquisition architecture provides high speed timing measurements simultaneously through the same probe used for state or timing measurements.
Timing zoom stays active all the time with no trade offs.
View data at high resolution over longer periods of time with 64K deep timing zoom.
Key Points
State clock rates up to 450MHz
Data rates up to 500Mb/s
Automated threshold/sample position setup for accurate measurements on high speed buses
Simultaneous eye diagrams on all channels identify problem signals quickly
State clock rates up to 450 MHz
Data rates: up to 500 Mb/s
Automated threshold/sample position setup for accurate measurements on high-speed buses
Simultaneous eye diagrams on all channels identify problem signals quickly
Specifications
Pattern generator channels: N/A
High-speed timing zoom: 4 GHz (250 ps) with 64 K depth
Maximum timing sample rate (Half/full ch):1.0 GHz (1.0 ns) / 500 MHz (2.0 ns)
Maximum state clock rate:450 MHz with option 500;250 MHz with option 250
Maximum state data rate :500 Mb/s with option 500;250 Mb/s with option 250
Maximum memory depth: 1 M with option 001;4 M with option 004;16 M with option 016;32 M with option 032
Supported signal types: Single-ended
Automated threshold/sample position Simultaneous eye diagrams, all channels: Yes
Probe compatibility: 40-pin cable connector
State analysis: 200 data + 4 clocks
Conventional timing : 204
Transitional timing for sample rates < 500 MHz : 204
Transitional timing for 500 MHz sample rate: 170
Timing zoom
Timing analysis sample rate: 4 GHz (250 ps)
Memory depth: 64 K samples
Trigger position: Start, center, end, or user-defined
Minimum data pulse width: 1 ns
Other
Voltage threshold: –5 V to 5 V (10 mV increments)
Threshold accuracy: ± 50 mV + 1% of setting
