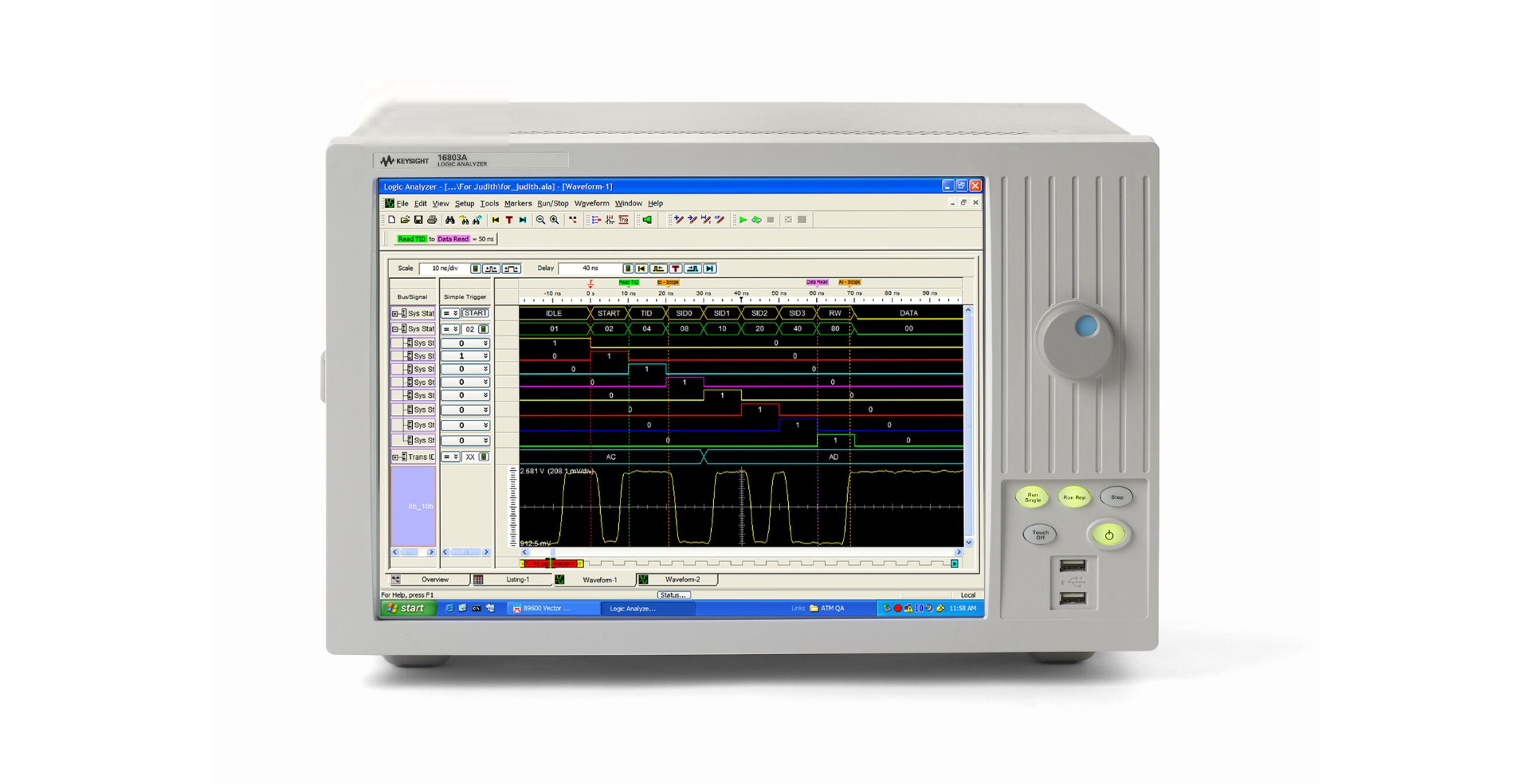

Agilent / HP / Keysight 16802A
16802A 68-Channel Portable Logic Analyzer
Description
This portable logic analyzers offer the performance, applications, and usability your digital development team needs to quickly debug, validate, and optimize your digital system at a price that fits your budget. This logic analyzers let you make accurate high speed timing measurements with 4GHz (250ps) high speed timing zoom. A parallel acquisition architecture provides high-speed timing measurements simultaneously through the same probe used for state or timing measurements.
Key Points
Logic Analyzer Configuration
15-inch (38.1 cm) color display with touch screen available
68-channel portable logic analyzer with up to 32 M acquisition memory depth, equivalent model with built-in pattern generator
Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments)
Timing Analysis (Asynchronous Sampling)
4 GHz (250 ps) timing zoom with 64 K memory
1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
500 MHz transitional timing
#State Analysis (Synchronous Sampling)
State clock rates up to 450 MHz
Data rates: up to 500 Mb/s
Automated threshold/sample position setup for accurate measurements on high-speed buses
Simultaneous eye diagrams on all channels identify problem signals quickly
Specifications
Pattern generator channels: 48
High-speed timing zoom: 4 GHz (250 ps) with 64 K depth
Maximum timing sample rate (Half/full ch):1.0 GHz (1.0 ns) / 500 MHz (2.0 ns)
Maximum state clock rate:450 MHz with option 500; 250 MHz with option 250
Maximum state data rate :500 Mb/s with option 500; 250 Mb/s with option 250
Maximum memory depth: 1 M with option 001;4 M with option 004;16 M with option 016;32 M with option 032
Supported signal types: Single-ended
Automated threshold/sample position Simultaneous eye diagrams, all channels: Yes
Probe compatibility: 40-pin cable connector
State analysis: 64 data + 4 clocks
Conventional timing :68
Transitional timing for sample rates < 500 MHz :68
Transitional timing for 500 MHz sample rate:34
Timing zoom
Timing analysis sample rate: 4 GHz (250 ps)
Memory depth: 64 K samples
Trigger position: Start, center, end, or user-defined
Minimum data pulse width: 1 ns
Other
Voltage threshold: –5 V to 5 V (10 mV increments)
Threshold accuracy: ± 50 mV + 1% of setting
