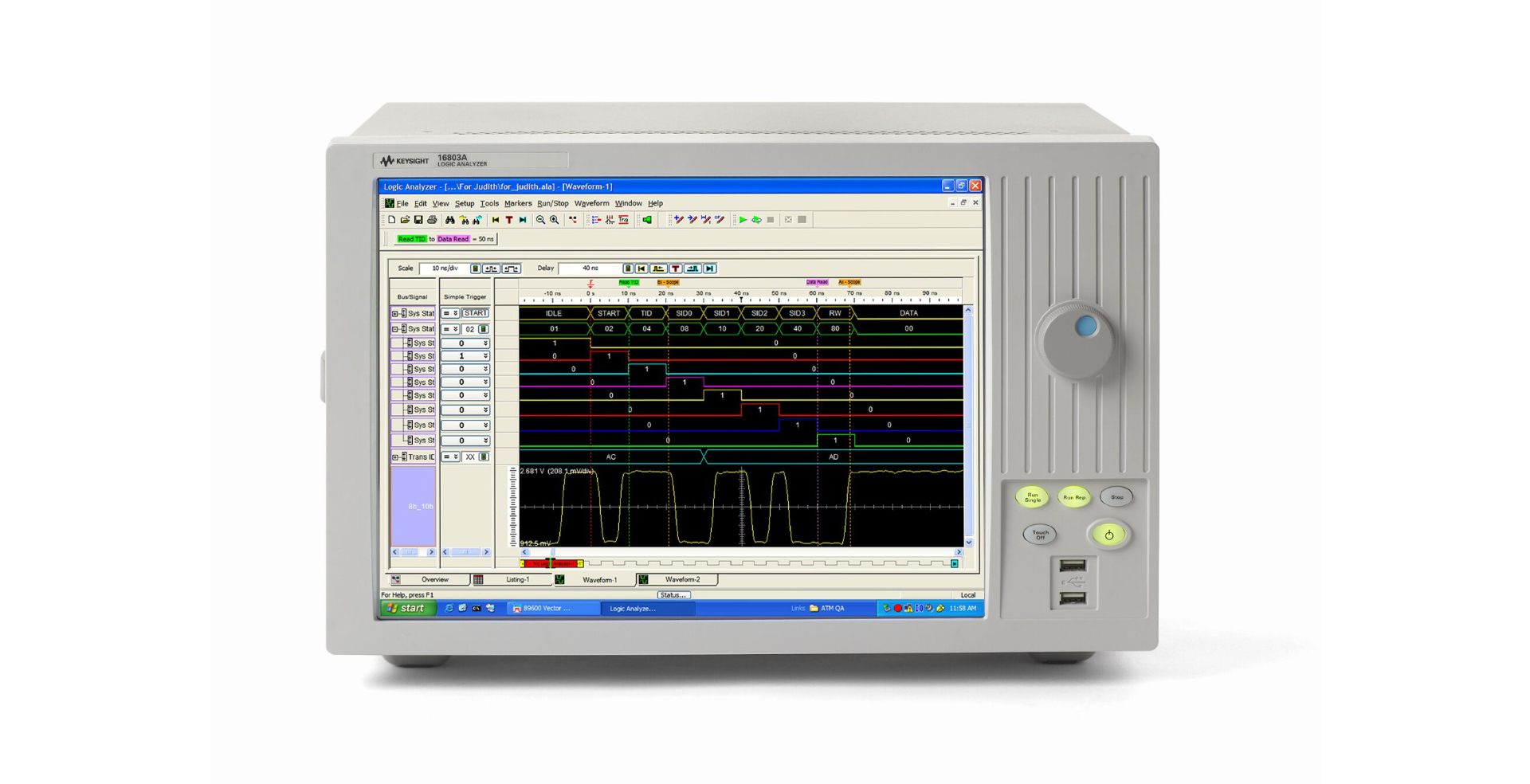

Agilent / HP / Keysight 16801A
16801A 34-Channel Portable Logic Analyzer
Description
This Analyzer delivers an exclusive combination of logic analysis, pattern generation, application software and innovative probing.
Upgradeable logic analyzer memory depth allows you to purchase the capability you need now and upgrade as your needs evolve.
The fixed configuration with 15" display (touch screen available) delivers the performance you need along with seamless scope integration and an intuitive interface to help you quickly overcome the toughest digital debug challenges all at an affordable price.
View Scope quickly lets you validate signal integrity and timing relationships between analog and digital domains by seamlessly integrating your scope and logic analyzer waveforms into a single display.
Key Points
Simple LAN and BNC connection
4GHz timing/250MHz state analysis
34 channels
State clock rates up to 250MHz
500MHz transitional timing
State Analysis (Synchronous Sampling)
State clock rates up to 250 MHz
Data rates: up to 250 Mb/s
Automated threshold/sample position setup for accurate measurements on high-speed buses
Simultaneous eye diagrams on all channels identify problem signals quickly
Specifications
Pattern generator channels: 48
High-speed timing zoom: 4 GHz (250 ps) with 64 K depth
Maximum timing sample rate (Half/full ch):1.0 GHz (1.0 ns) /500 MHz (2.0 ns)
Maximum state clock rate:250 MHz with option 250
Maximum state data rate :250 Mb/s with option 250
Maximum memory depth: 1 M with option 001;4 M with option 004;16 M with option 016;32 M with option 032
Supported signal types: Single-ended
Automated threshold/sample position Simultaneous eye diagrams, all channels: Yes
Probe compatibility: 40-pin cable connector
State analysis: 32 data + 2 clocks
Conventional timing :34
Transitional timing for sample rates < 500 MHz :34
Timing zoom
Timing analysis sample rate: 4 GHz (250 ps)
Memory depth: 64 K samples
Trigger position: Start, center, end, or user-defined
Minimum data pulse width: 1 ns
Other
Voltage threshold: –5 V to 5 V (10 mV increments)
Threshold accuracy: ± 50 mV + 1% of setting
