Agilent / HP / Keysight 1663CS

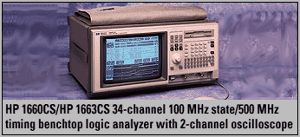

1663CS 34-Channel 100 MHz State/500 MHz Timing Benchtop Logic Analyzer w/ 2-Channel Oscilloscope...

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This Logic Analyzer with oscilloscope helps you get to the root cause of problems quickly, and now at a new lower price.

The ability to connect to an Ethernet LAN provides an easy method of sharing data within the design team and provides remote access to the logic analyzer from a PC or workstation.

A built in 540 megabyte hard disk drive combined with the LAN connectivity now makes it possible to use the HP B3740 software analyzer for source line referencing; this is the ability to see correlated high level C++ source code with the inverse assembled state listing.

Key Points

34 state and timing channels

100MHz state analysis with 2 state clocks/qualifiers

Integrated 2 channel 1 GSA/s Oscilloscope

Specifications

Number of Channels State/Timing: 34

Conventional Timing Speed: 250MHz to 500MHz

Glitch Timing Speed: 125MHz

State Speed/Timing Speed: 100MHz

State/Timing Memory Depth: 4k to 8k

Transitional Timing Speed: HDD to 250MHz

Type: Stand Alone
