Agilent / HP / Keysight 10896B

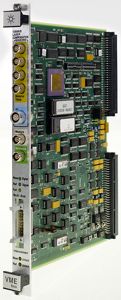

10896B Laser Compensation Board for VMEbus
Description
The Agilent 10896B is a compensation board for VMEbus. It will increase the accuracy and repeatability of Agilent's VME-based laser interferometer positioning systems. When using your own or Agilent's environmental sensors, the 10896B detects and compensates for changes in the system's operating environment. The 10751C/D air sensor can be used to provide accuracy up to ±1.5 ppm. The 10757D/E/F material temperature sensors are used to compensate for thermal expansion errors.
Key Points
Automatically compensates for environmental changes that affect WOL
Automatically compensates for equipment thermal expansion
Increases accuracy and repeatability of systems using either Agilent 10897B high resolution or Agilent 10895A laser axis boards for VMEbus
Single-width front panel, 6U-size board uses surface-mount technology for compact, reliable electronics
Programmable for use with custom sensors
Specifications
Compensation
Environment:
Pressure: 760 mm +/-25 mm Hg
Relative Humidity: 50% +/-10%
Temperature: as shown in table
Measurement Accuracy*
