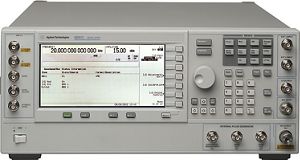

Agilent / HP / Keysight E8267C
E8267C PSG Vector Signal Generator, up to 20 GHz
Description
This unit is the industry's first integrated microwave vector signal generator with direct I/Q modulation up to 20 GHz
It features a built-in wideband I/Q modulator that delivers up to 1 GHz RF modulation bandwidth and an advanced wideband (80 MHz) internal baseband generator capable of flexible arbitrary waveform playback and sophisticated real-time signal generation.
Clearly this groundbreaking integrated functionality, only available in the E8267C PSG, drastically simplifies the generation of complex vector modulated signals for design and manufacturing test applications in aerospace, defense, satellite communications, and broadband wireless.
Key Points
Continuous data streams with variable symbol rates.
Flexible arbitrary waveform sequencing
Industry-leading phase noise performance
Step, list, & ramp sweep frequency and power
Internal baseband generator
Specifications
Frequency Accuracy: 0.01dB
Frequency Range: 0.001Hz
Frequency Resolution: -130dBm to +18 dBm
Output Resolution: -134dBc/Hz to -108dBc/Hz
Typ: 50MHz to 20 or 40GHz
Frequency Range : 250kHz to 20GHz with 0.001Hz
Output power : +17 to -130dBm
