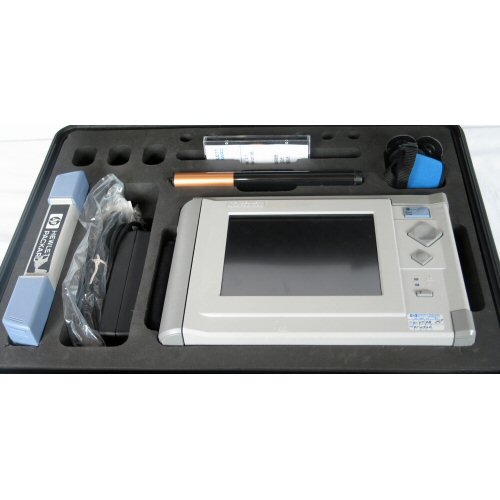

Agilent / HP E6000A
Mini OTDR
Description
This unit is the latest addition to HP's portfolio of fiber optic test solutions for the installation, maintenance and operation of fiber networks, complementing the HP 8147 OTDR and the HP 81700 Series 200 RFTS.
It is an affordable and portable Mini OTDR designed to maximize the uptime of fiber optic networks without compromising high performance and ease of use.
It is designed to provide its users with the fastest tool available for installing and commissioning multiple fiber links and locating faults for fiber maintenance through high measurement performance and an award winning simple to use interface.
Several input modules are available to provide the fastest capabilities in fiber testing today.
Key Points
Built in multi fiber test
Pass/Fail Test
Fiber break locator mode
Automatic fiber characterization
GR 196 CORE trace format
Locates and characterizes splice and connector losses
Multi fiber testing for fast high count cable qualification
Specifications
Maximum Distance Range: 400km
Minimum Distance Resolution: 0.625cm
Maximum Distance Resolution: 31.25m
Maximum Dynamic Range: 46dB
Minimum Pulse Width: 5ns
Maximum Pulse Width: 20us
