Agilent / HP / Keysight E4440A

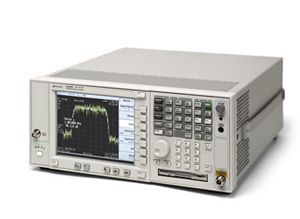

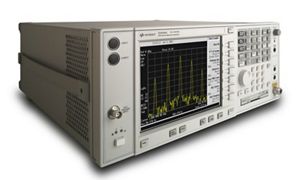

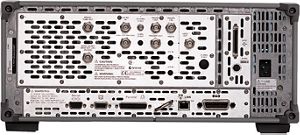

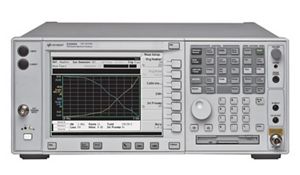

E4440A PSA Spectrum Analyzer, 3 Hz to 26.5 GHz

Please help us customize your browsing experience, by selecting one the below.

Description

The Agilent E4440A PSA high-performance spectrum analyzer measures and monitors complex RF and microwave signals up to 26.5 GHz. With optional external mixing, the frequency coverage expands to 110 GHz by Agilent external mixer, and to 325 GHz by other vendors' mixer.

Key Points

All-digital IF with auto-ranging capability
Phase noise optimization
Full detector suite
160 resolution bandwidth settings (10% steps)
2 dB step attenuator
FFT and swept measurement modes
Gated sweep
Power Suite one-button power measurements
EMI measurements with CISPR compliant bandwidths and detectors

Specifications

Dynamic Range:+30 dBm to -156 dBm
Frequency Range:3 Hz to 26.5 GHz
Input Impedance:50 ohms
Other Features:type N Female
Resolution Bandwidth:1 Hz to 3 MHz
Video Bandwidth:1 Hz to 3 MHz
