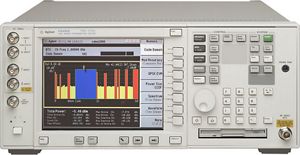

Agilent / HP / Keysight E4406A
E4406A VSA Transmitter Tester, 7 MHz to 4 GHz
Description
This unit provides the ability to design and develop both base band and RF components and test them together.
The base band IQ inputs option supports digital demodulation measurements for the EDGE, cdma 2000, W-CDMA and basic measurement personalities on it.
This option also supports both unbalanced 50Ω and 1M Ω, and balanced 600Ω and 1M Ω inputs.
Each I and Q input has a frequency range of 5Hz to 5MHz, giving a combined composite bandwidth of 10MHz.
With base band IQ inputs this provides an economical low frequency (5Hz to 5MHz) or 10MHz I/Q front-end for the 89601A vector signal analysis software.
Key Points
Supports baseband EDGE and GSM measurements (transmit power, GMSK PVT, phase and frequency, spectrum, waveform, EDGE EVM and EDGE PVT).
Supports baseband W-CDMA measurements (code domain power, modulation accuracy, QPSK EVM, power statistics CCDF, power control, and PVT, channel power, occupied bandwidth, spectrum and waveform).
Supports baseband cdma2000 measurements (code domain power, modulation accuracy, QPSK EVM, power statistics CCDF, channel power, occupied bandwidth, spectrum and waveform).
Supports basic mode measurements (spectrum, waveform, power statistics, CCDF, and channel power).
Supports 89601A vector signal analysis software.
Specifications
Frequency range:
RF input:7 to 314 MHz and 329 MHz to 4 GHz
Baseband IQ inputs: 0 Hz to 5 MHz
Frequency spans:
5 Hz to 5 MHz (Baseband I or Q inputs)
10 Hz to 10 MHz (Composite I/Q)
Frequency setting resolution: 1 Hz
RF input:
20 MHz to 2 GHz ≤ –85 dBm
2 to 4 GHz ≤ –80 dBm
Maximum measurement power: +30 dBm (1W)
Maximum safe DC voltage: ±26 Vdc
Maximum safe input power: +35 dBm (3.16W)
Input attenuator Range: 0 to +40 dB
Step size:1 dB steps
Accuracy at 50 MHz : ±0.3 dB relative to 10 dB attenuation
Weight:
19 kg (42 lb) (nominal)
20 kg (44 lb) with baseband
Dimensions:
177 mm H x 426 mm W x 432 mm D (7.0 in H x 16.8 in W x 17 in D)
