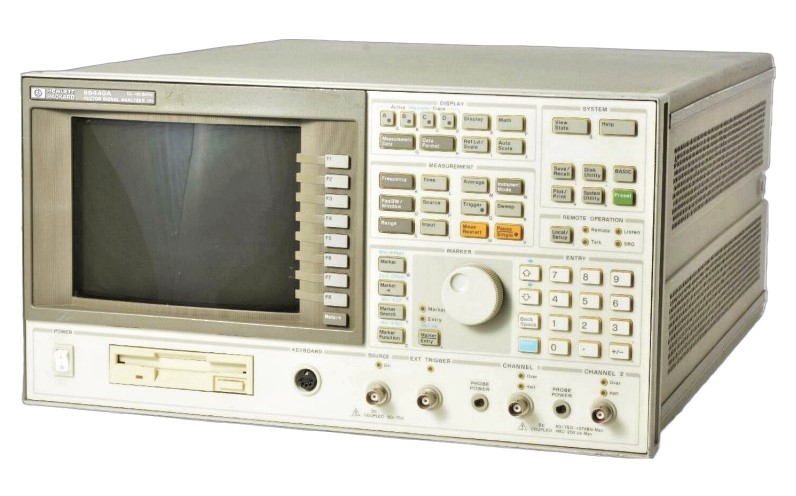

Agilent / HP / Keysight 89440A
89440A 1.8 GHz Vector Signal Analyzer
This Analyzer is used for the most advanced measurements of complex and time varying signals such as digital modulation analysis, and AM/FM/PM demodulation, vector spectrum analysis, and time gated spectrum analysis.
Simultaneous time domain and frequency domain measurements and displays improved productivity and enhance easy of use.
The scalar RF instrument mode allows full frequency coverage in spans of 1798MHz.
Vector RF mode offers exceptional speed and additional signal processing for enhanced time domain characterization and demodulation.
In vector RF mode, both phase and amplitude characteristics are captured in the time series data.
Scale/Vector analysis modes
Real time BW: 78.125KHz
p>Time Gating: <400ns
Time capture memory: 64K
Form Factor: Mainframe
Frequency Range: 2MHz to 1.8GHz
Number of Channels: 2
