Agilent / HP / Keysight 8920B

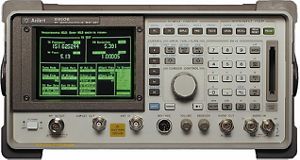

8920B RF Communications Test Set
Description
The 8920B is a full-function RF test set with accuracy, speed, and flexibility for testing land mobile radios, cellular telephones, and other communications systems while improving throughput and quality in manufacturing.
Option 006 was designed to optimize the measurement range for cellular mobile station test. This option has a 6 dB attenuator at the RF IN/OUT port. It increases the dynamic range of the Agilent 8920B by 2 dB and enables true-average power measurements on TDMA signals using the 83206A (8920B Option 800). Option 006 is recommended for TIA/EIA-136 testing.
Option 016 tests high power transmitters (up to 100 W continuous, 125 W intermittently with a 10 seconds per minute duty cycle). It has a 16 dB fixed attenuator at the RF IN/OUT port.
The Option 020 for the 8920B is a built-in radio interface card for automating module and radio test. It contains 16 parallel data lines, two interrupts, and brings the audio in/out lines and a relay closure out from the MIC/ACC connector on the front panel. These are controlled by the 8920B IBASIC control language.
Key Points
Call processing and on-call parametric test interface.
High-level GPIB commands simplify call processing programmability
DCCH (TIA/EIA-136) phone test with 83206A TDMA Cellular Adapter for 800 and 1900 MHz bands
Accurate digital power measurements, with true-average TDMA power measurements
VEE support with 8920B drivers
PCS (1710 to 1990 MHz) phone test upgrade path with the 83236B PCS interface
DAMPS (IS-54) and DCCH (IS-136) mobile phone test
Pi/4 DQPSK signal generator
Pi/4 DQPSK analyzer
Bit Error Rate (BER) meter
Adjacent/alternate channel power measurements
Specifications
Frequency Range: 30 MHz to 1 GHz
Resolution: 1 Hz displayed
SWR: <1.5:1
GPIB: A general purpose implementation of IEEE Standard 488.2
Operating Temperature: 0 to +55 deg C
Storage Temperature: -55 to +75 deg C
Dimensions: 7.5 in. H x 13 in. W x 19 in. D (188 x 330 x 456 mm)
Weight: 37 lb net (16.8 kg), Shipping Weight: 61 lb net (27.7 kg)
