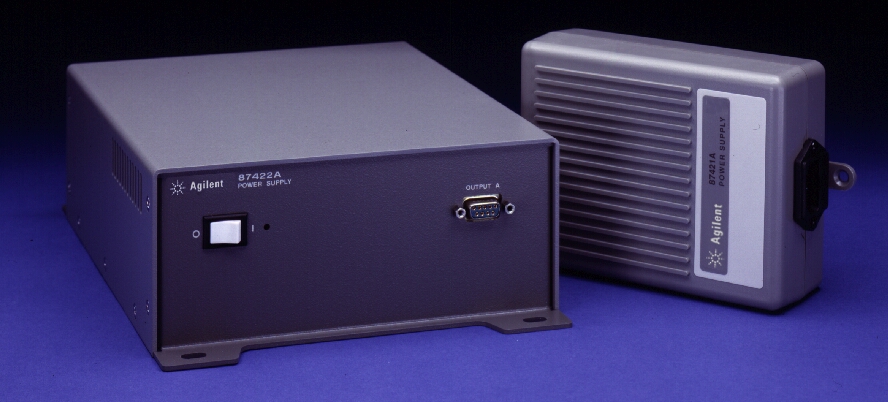

Agilent / HP 87422A
DC Power supply 15V 3.3A
Description
This unit is a universal input, DC switching power supply (12VDC, 15VDC, 70W) that is designed to provide the bias voltages that are needed to operate Agilent microwave system amplifiers.
These compact power supplies are for integration into a system or to use on a benchtop.
The two-meter dc bias cable will allow the amplifier to be remotely located.
This will allow it to be placed out of the way or where space is not critical.
This unit is a 90 watt, plus or minus 15V DC power supply that is designed to power the 83020A microwave system power amplifier.
One additional plus or minus12V dc output is provided to power a preamp such as the Agilent 83006A or the 83017A.
The two-meter cable that connects to the amplifier come with it and also the power supply.
Key Points
Designed for Agilent microwave system amplifiers
Bias cable permits remote placement
Compact size for easy system integration
Specifications
+15V at 3.3A, -15V at 50mA
+12V at 2.0A, -12V at 200mA
Output Power: 70W, maximum
