Agilent / HP / Keysight 83440D

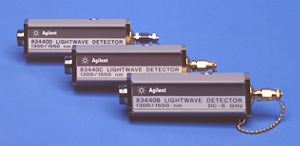

83440D DC-30 GHz Lightwave Converter
Description
This Light wave converter features hermetically sealed, unamplified InGaAs photo diodes.
Input ports have universal optical interfaces that are compatible with most optical connectors (9/125 µm fiber).
Output ports have a precision 2.4mm microwave coaxial connector.
Key Points
Fast 14.7ps Full Width Half Max (FWHM) pulse response
Broad 30GHz bandwidth (3 dB opt)
Small, convenient package.
Low pulse aberrations.
Integral bias regulation.
Ideal for high speed digitizing oscilloscopes.
Specifications
Form Factor: Benchtop
Type: Converters
Wavelength: 1000nm to 1600nm
Connector Type to DUT: 2.4mm(f)
Inter-connect connector type: UCI(f)
Return Loss: 33dB
