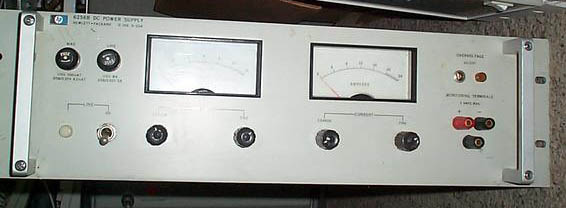

Agilent / HP 6256B

DC Power Supply 40V 1.5A

Note: Federal Resellers: We Do Not Sell New Equipment
Agilent / HP 6256B -
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This unit is a general purpose, rack mounted DC Power Supply.

It features dual analog panel meters for monitoring of voltage and current and automatic switchover between Constant Voltage and Constant Current modes.

Operator adjustable over voltage protection is provided.

Internal Sensing, External Sensing, and remote programming is available through rear panel barrier strip connections.

Key Points

Maximum Current of 20ADC

Maximum Voltage of 10VDC

Maximum Wattage of 200W

Single Output

Total Power of 120 Watts

Accuracy of 2%

Specifications

Form Factor: Rackmount

Maximum Current: 20ADC

Maximum Voltage: 10VDC

Maximum Wattage: 200W

Number of Outputs: Single Output

Total Power: 120Watts

Type: DC

Accuracy: 2%
