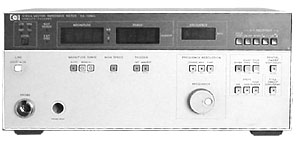

Agilent / HP 4193A
Vector Impedance Meter
Description
This unit measures impedance magnitude and phase.
It allows for testing components both in and out of circuit.
The L-ground probe allows for in circuit measurements and a variety of optional adapters provide an interface for out of circuit components.
Key Points
Frequency range: 400KHz - 110.0MHz
Frequency control: spot, full sweep, partial sweep
Impedance magnitude |Z| range: 10milliohms to 120kohms
Phase range: -180º to +180º
HP-IB interface
100, 120/220 Vac ±10%, 240Vac +5% -10%; 48-66Hz operation
Weight: 40lb; Size: 177mm (7.0in)H x 426mm (16.75in)W x 498mm (19.6in)D.
Specifications
Frequency range: 400KHz - 110.0MHz
Frequency control: spot, full sweep, partial sweep
Impedance magnitude |Z| range: 10milliohms to 120kohms
Phase range: -180º to +180º
HP-IB interface
100, 120/220 Vac ±10%, 240Vac +5% -10%; 48-66Hz operation
Weight: 40lb; Size: 177mm (7.0in)H x 426mm (16.75in)W x 498mm (19.6in)D.
