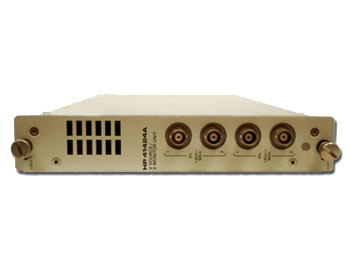

Agilent / HP 41424A
DC Source/Monitor 40V 100mA
Description
This unit provides two voltage monitors and two voltage supplies with built in ammeters.
The voltage monitors can be connected in a differential measurement configuration for improved resolution.
This unit module occupies a single slot in the 4142B mainframe.
This unite HP 4142B Modular DC Source/ Monitor with one of this unit's High Current Unit (HCU) and one High Voltage Unit (HVU) can source/measure up to
lOA/lOOOV.
This can be easily extended to 2OAl2OOOV by using two HCUs and two HVUs.
Key Points
Ability to control external relays
Voltage Source Output/Measurement voltage range settings
Requires 4142B Mainframe
Voltage source typical output resistance of 0.2Ω
Voltage source maximum capacitive load of 10µF
Specifications
Voltage source typical output resistance: 0.2Ω
Voltage source maximum capacitive load: 10µF
Source maximum slew rate: 0.2V/µsec
Source current limit accuracy: -0%, +10%
Voltage source typical output noise: 0.005% of V range (rms)
Voltage monitor typical input resistance: >100MΩ
Voltage monitor maximum leakage current: 2nA
Voltage monitor typical noise level at input: 0.01% of V range (p-p)
Slot(s) occupied: 1
Shipping Weight: 10lbs
