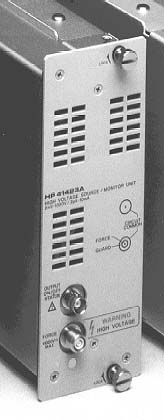

Agilent / HP 41423A
DC Source 1000V 10mA
Description
This DC Source makes DC or pulsed measurements to +/-1000V with the HVU source monitor unit.
Its low leakage design allows current measurements down to 2pA.
A special high voltage triaxial cable, connectors, fixture interlock, and a LED status indicator provide hazard protection and convenience while maintaining full system accuracy.
Key Points
Create measurement code quickly and interactively
Solve problems fast with HP VEE icon based software
Current range from ± 50pA to ±10mA
Specifications
Voltage: ±10mV to ± 1000 V
Current range: ± 50pA to ±10mA
Measurement Resolution: 2mV 2pA
Accuracy: 0.05%V and 1%I.Output
Maximum Current: 1000 Volts to 10Amps
Total Power: 10000W
