Agilent / HP 11713A

Attenuator/Switch Driver

Please help us customize your browsing experience, by selecting one the below.

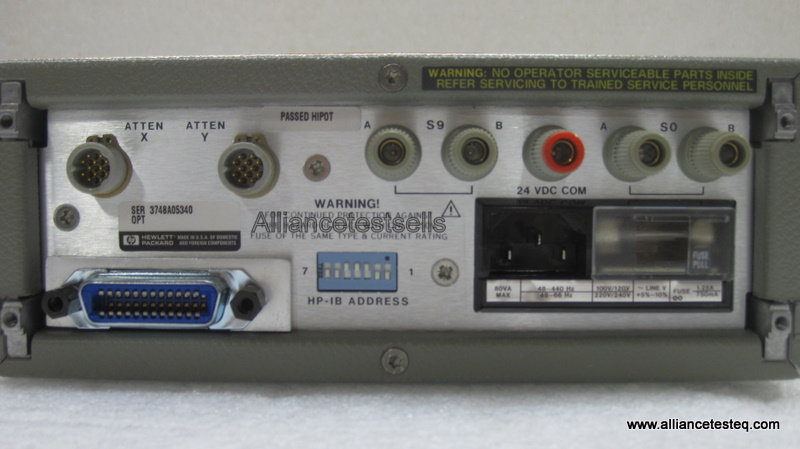

Description

The Agilent 11713A attenuator/switch driver provides GPIB or "local" front panel drive control for programmable attenuators and electromechanical switches. Concurrently drive up to two Agilent 8494/5/6/7, Agilent 84904/6/7K/L programmable attenuators and two electromechanical switches (Agilent 8761, 8762, or 8765 series). The Agilent 11713A can also be used to supply +24 V common and ten pairs of current sinking contacts (total current draw less than 1.3A peak for 1 second, 0.65A steady state) to independently control up to 10 relays. An integral power supply with short circuit protection eliminates the need for an external power source. Each Agilent 11713A is supplied with two plug-in drive cables to simplify connection to programmable attenuators. Switching time is less than 10 milliseconds.

Key Points

Simple GPIB control of up to ten switch or attenuator sections

Drives two attenuators and two switches concurrently

Controls up to ten 24 V relays

Specifications

Voltage: + 24 ± 2.0 Vdc
Current:
1.3 A maximum peak for 1 second
0.65 A maximum continuous current
Power:
100 or 120 Vac, +5%, –10% at 48 to 440 Hz
200 or 240 Vac, +5%, –10% at 48 to 66 Hz
80 VA maximum
Response Time:
10 micro s maximum for contact pairs 1 through 8
20 micro s maximum for contact pairs 9 and 0
Maximum Load Inductance: 500 mH
Maximum Load Capacitance: < 0.01 micro F for contact pairs 9 and 0
Net Weight : 4.1 kg (9 lbs)
Dimensions:
Height: 102 mm (4 inches including feet)
Rack height: 89 mm (3.5 inches, half-width module)
Width: 213 mm (8.4 inches)
Depth: 295 mm (11.6 inches)
