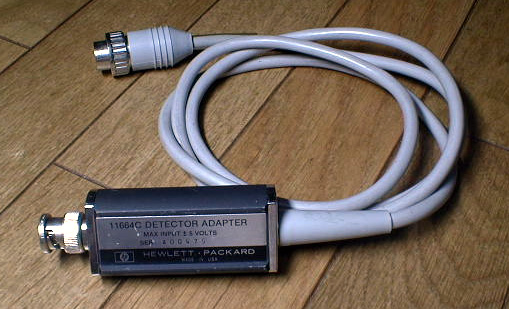

Agilent / HP 11664C
Detector Adaptor
Description
The Detector Adapter is used to adapt any standard AC diode detector output for display on the HP 8765A or 8757A scalar network analyzers.
The detector adapter enables the analyzer to measure modulated (AC) test signals.
The ability to use a standard diode detector extends the frequency range of the network analyzer to that of the detector used.
Key Points
AC mode only
Detector dependent
Connector Type to DUT are SMA(m)
Specifications
Impedance: 50ohms
Maximum input voltage: 10V
Cable length: 122cm
