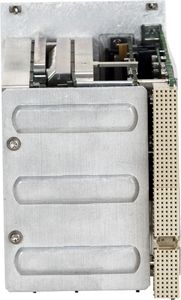

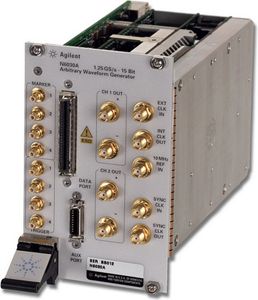

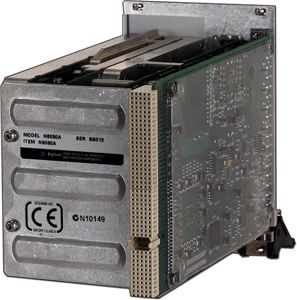

Agilent / HP / Keysight N6030A
N6030A Arbitrary Waveform Generator, 15-Bit, 1.25 GS/s
This unit delivers unprecedented performance for creation of complex wideband waveforms.
It's high sampling rate and high bit resolution provideds in a single instrument enable designers to create ideal waveforms for accurate test of radar, satellite and frequency agile systems.
Each channel provides 500MHz of modulation bandwidths and over 65dBc of spurious free dynamic range.
When it's combined with a wideband I/Q upconverter, modulation bandwidth of 1GHz can be realized at microwave frequencies for authentic signal simulations for IF and RF subsystem test.
1.25GS/s and 15 bits of vertical resolution per channel provides exceptionally realistic wideband waveforms
Dual output channels drive both single-ended and balanced designs without the need for baluns or hybrids
Extended waveform memory and advanced sequencing engine offers long scenario simulations
Multiple module synchronization provides multi-emitter simulations
Multiple programmatic interfaces enable easy integration into existing test environments
1.25GS/s sample clock
15 bits of vertical resolution
Dual channel operation
Differential and single ended outputs
Up to 16MS waveform memory (optional)
Multiple module synchronization
Up to 512k definable waveform segments
Up to 256k unique definable sequences
Complete instrument control from MATLAB
Compatible with CompactPCI and PXI mainframes
