Agilent / HP / Keysight N1912A

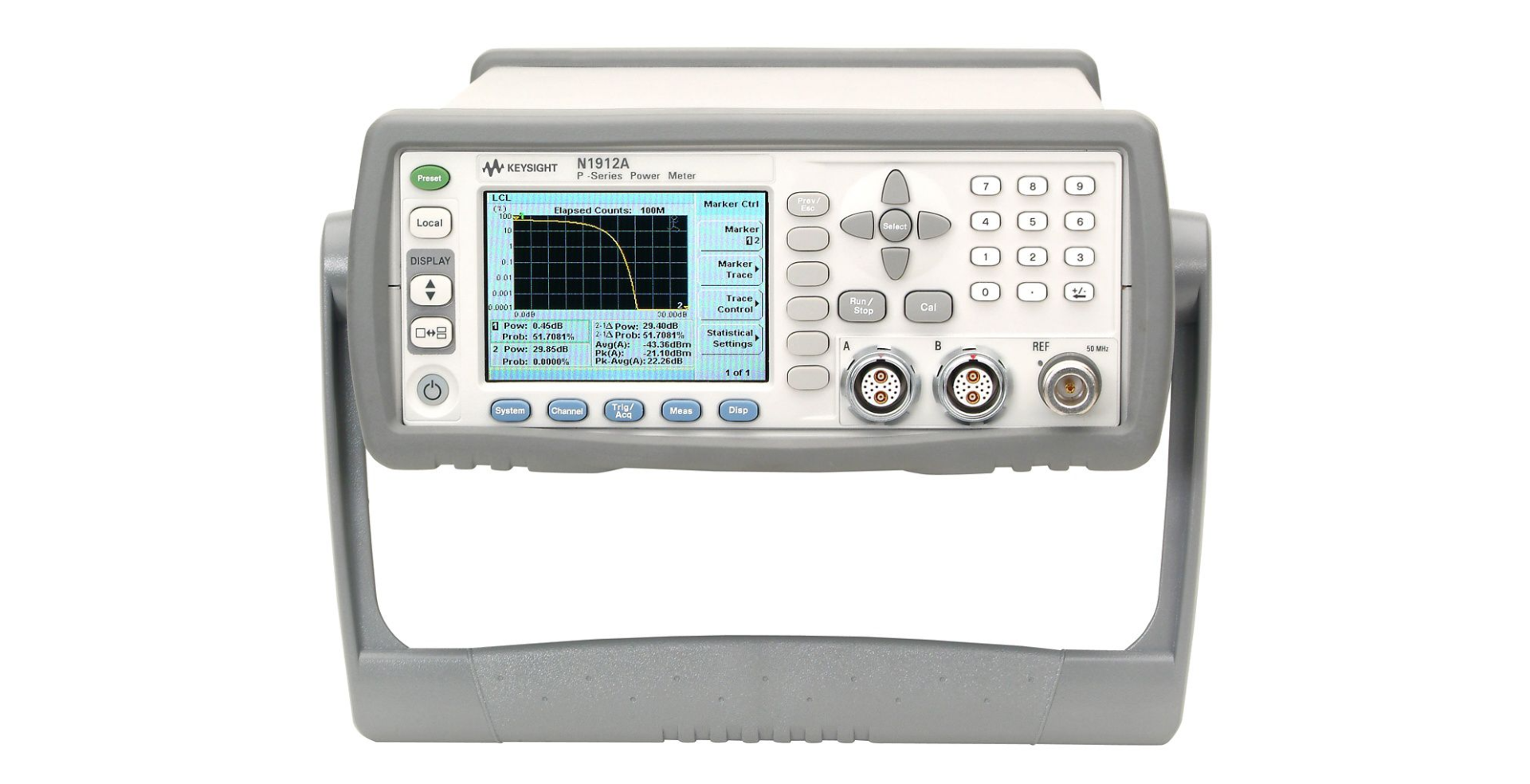

N1912A P-Series Dual Channel Power Meter

Please help us customize your browsing experience, by selecting one the below.

Description

When used with the N192XA wideband power sensors, the N1912A P-Series dual channel power meter provides a measurement frequency range from 50 MHz to 40 GHz with an internal zero and calibration capability.

Key Points

30 MHz video bandwidth
Single shot real time capture at 100 Msample/s per second
Key Measurements: - peak, average, peak-to-average ratio, rise time, fall time and pulse width
High Speed Complementary Cumulative Distribution Function (CCDF) statistical analysis
Also compatible with the industry standard 8480 and E-series sensors (except E932x) which provide a wide dynamic range from -70 to +44 dBm, and a frequency coverage from 9 kHz to 110 GHz.
Zero and calibrate while connected to the DUT
Versatile connectivity with USB, LAN and GPIB as standard
2-year calibration cycle
Difference and ratio math functions : (A-B, B-A, A/B and B/A)

Specifications

Number of channels:dual channel
Maximum sampling rate:100 Msamples/sec, continuous sampling
Video bandwidth:≥ 30 MHz
Single-shot bandwidth:≥ 30 MHz
Rise time and fall time:≤ 13 ns (for frequencies ≥ 500 MHz)2, see Figure 1
Minimum pulse width:50 ns
Overshoot:≤ 5 %
Dynamic range:
–35 dBm to +20 dBm (> 500 MHz)
–30 dBm to +20 dBm (50 MHz to 500 MHz)
Maximum capture length:1 second
Maximum pulse repetition rate:10 MHz (based on 10 samples per period)
Timebase:
Timebase range:2 ns to 100 msec/div
Accuracy:±10 ppm
Jitter:≤ 1 ns
Internal trigger:
Range:–20 to +20 dBm
Resolution:0.1 dB
Level accuracy:± 0.5 dB
Latency:160 ns ± 10 ns
Weight:3.7 kg (8.1 lb)
