Agilent / HP / Keysight MSO6034A

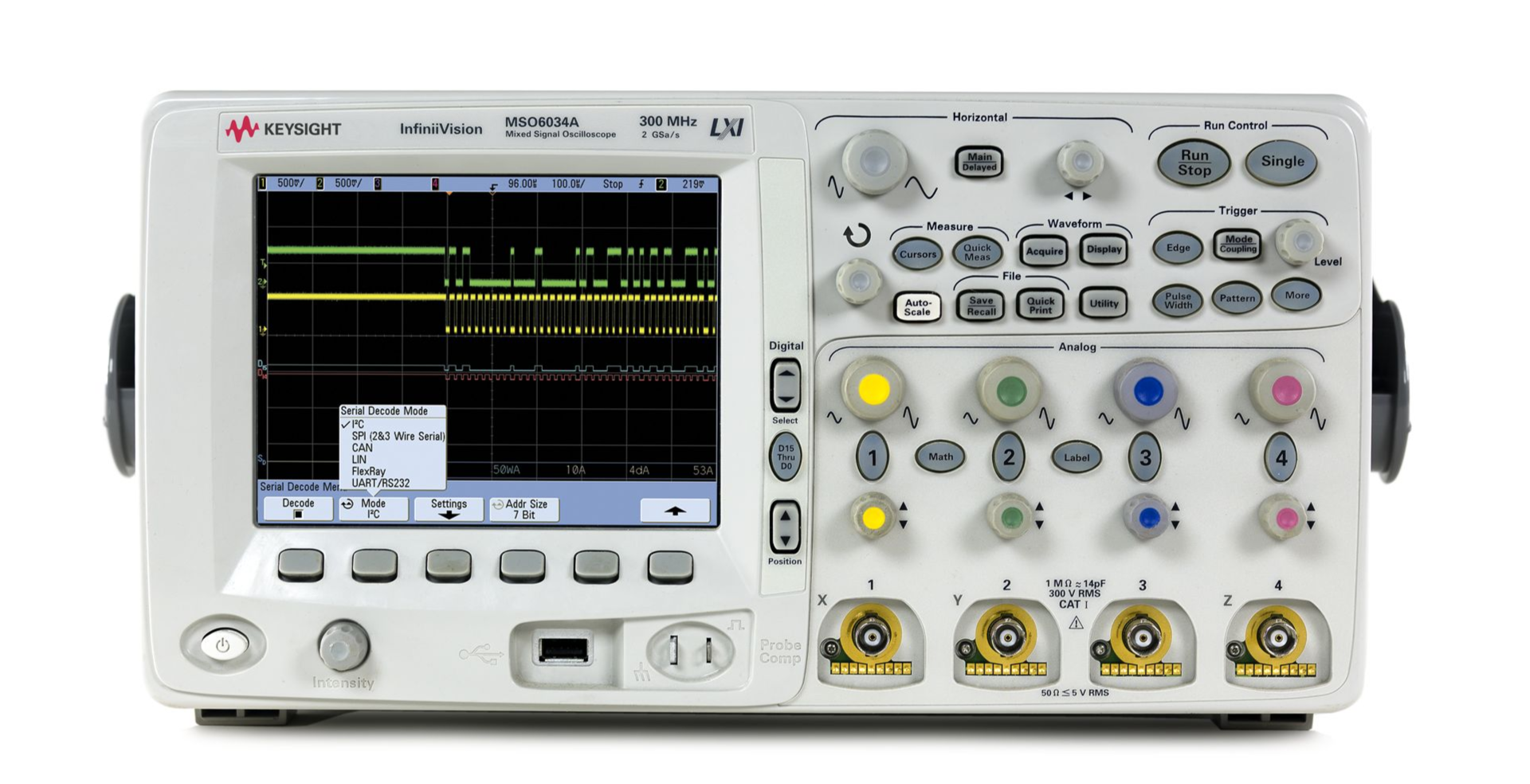

MSO6034A Mixed Signal Oscilloscope: 300 MHz, 4 Analog Plus 16 Digital Channels

Note: Federal Resellers, We Do Not Sell New Equipment.
  • 90 Day Warranty Included
  • 21 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

Gain superior insight into analog, digital, or serial design challenges. The MSO6034A oscilloscope offers MegaZoom III deep memory, the highest definition color display with 256 levels of intensity and the fastest uncompromised update rate of 100,000 waveforms/sec of any scopes in its class.

Key Points

Lab scope performance at a portable scope price:
300 MHz Bandwidth
4 analog channels + 16 time-correlated digital channels
2 GSa/s sample rate
Standard 8 Mpts MegaZoom III deep memory

The Fastest Way to Debug your design:
Fastest update rate in the industry at 100,000 waveforms/sec
Digital debug for FPGAs with specific

Specifications

Acquisition: scope channels(4 ch):
Sample rate:2 GSa/sec each channel
Memory depth:2 channels/4 channels, 8 Mpts/4 Mpts
Vertical resolution:8 bits
Peak detection:500-ps peak detect

Acquisition: digital channels (MSO6000A or MSO-upgraded DSO6000A only)(16 ch):
Sample rate:2 GSa/sec one pod*, 1 GSa/sec each pod
Maximum input frequency:250 MHz
Vertical resolution:1 bit
Glitch detection:2 ns (min pulse width)

Memory depth:
One pod/both pods (with scope channels turned off):8 Mpts/4 Mpts
One pod/both pods (with scope channels turned on):2.5 Mpts/ 1.25 Mpts

Vertical system: scope channels:
Scope channels:Ch 1, 2, 3 and 4 simultaneous acquisition
Bandwidth (–3dB):DC to 300 MHz
AC coupled:3.5 Hz to 300 MHz
Range:2 mV/div to 5 V/div (1 Mohm or 50 ohm)
Dynamic range:±8 div
Coupling:AC, DC
Input impedance:1 Mohm ± 1% || 14 pF or 50 ohm ± 1.5%, selectable

Power requirements:
Line voltage range:100-120 V, 50/60/400 Hz; 100-240V, 50/60 Hz auto ranging
Line frequency:50/60 Hz, 100-240 VAC; 400 Hz, 100-120 VAC
Power usage:120 W max

Environmental characteristics:
Ambient temperature Operating:-10 °C to +55 °C; non-operating –40 °C to +70 °C
Humidity Operating:95% RH at 40 °C for 24 hr; non-operating 90% RH at 65 °C for 24 hr
Altitude:Operating to 4,570 m (15,000 ft); non-operating to 15,244 m (50,000 ft)
Vibration:Agilent class B1 and MIL-PRF-28800F; class 3 random
