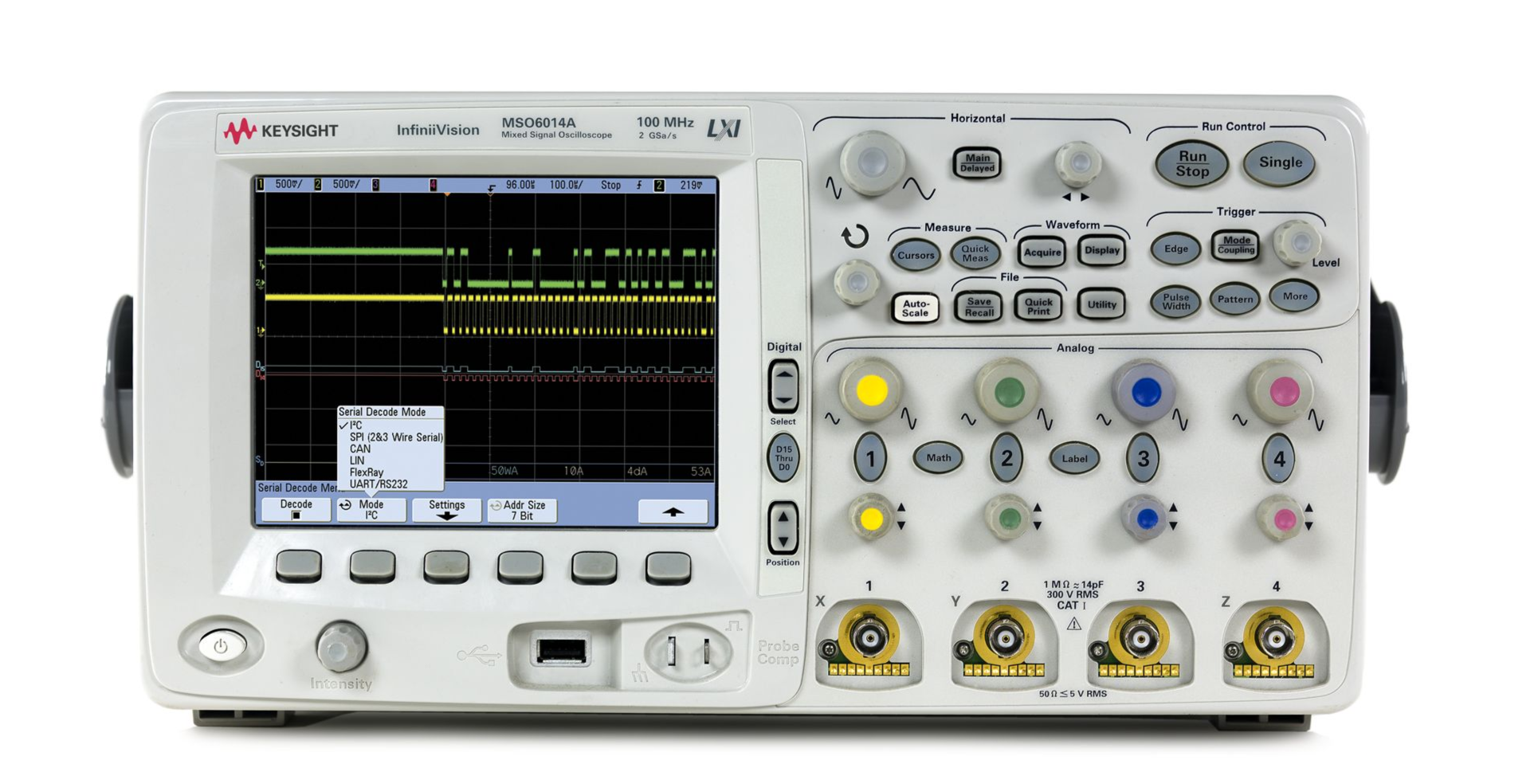

Agilent / HP / Keysight MSO6014A

MSO6014A Mixed Signal Oscilloscope: 100 MHz, 4 Analog and 16 Digital Channels

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

Gain superior insight into analog, digital, or serial design challenges. The MSO6014A oscilloscope offers MegaZoom III deep memory, the highest definition color display with 256 levels of intensity and the fastest uncompromised update rate of 100,000 waveforms/sec of any scopes in its class.

Key Points

Connectivity standard: LAN, USB, GPIB and XGA video output

High definition XGA color display with 256 levels of intensity

100,000 waveforms/sec update rate

Fast and responsive MegaZoom III deep memory MegaZoom III

16 digital channels time correlated with scope channels

Pattern and mixed signal triggering across all analog and digital channels

FPGA Dynamic Probe Application option for Xilinx

FPGA Dynamic Probe Application option for Altera

I2C and SPI trigger standard and available decode options

CAN, LIN and FlexRay automotive serial trigger and decode options

USB standard trigger

Specifications

Acquisition: scope channels(4 ch):
Sample rate:2 GSa/sec each channel
Memory depth 2 channels/4 channels, 8 Mpts/4 Mpts
Vertical resolution:8 bits
Peak detection:1-ns peak detect

Acquisition: digital channels (MSO6000A or MSO-upgraded DSO6000A only)(16 ch):
Sample rate:2 GSa/sec one pod*, 1 GSa/sec each pod
Maximum input frequency:250 MHz
Vertical resolution:1 bit
Glitch detection:2 ns (min pulse width)

Memory depth:
One pod/both pods (with scope channels turned off):8 Mpts/4 Mpts
One pod/both pods (with scope channels turned on):2.5 Mpts/ 1.25 Mpts

Vertical system: scope channels:
Scope channels:Ch 1, 2, 3 and 4 simultaneous acquisition
Bandwidth (–3dB):DC to 100 MHz
AC coupled:3.5 Hz to 100 MHz
Range:1 mV/div to 5 V/div (1 Mohm)
Dynamic range:±8 div
Coupling:AC, DC

Power requirements:
Line voltage range:100-120 V, 50/60/400 Hz; 100-240V, 50/60 Hz auto ranging
Line frequency:50/60 Hz, 100-240 VAC; 400 Hz, 100-120 VAC
Power usage:120 W max

Environmental characteristics:
Ambient temperature Operating:-10 °C to +55 °C; non-operating –40 °C to +70 °C
Humidity Operating:95% RH at 40 °C for 24 hr; non-operating 90% RH at 65 °C for 24 hr
Altitude:Operating to 4,570 m (15,000 ft); non-operating to 15,244 m (50,000 ft)
Vibration:Agilent class B1 and MIL-PRF-28800F; class 3 random
