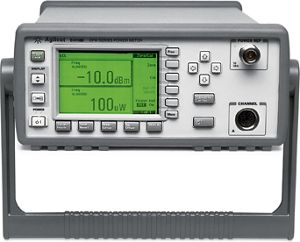

Agilent / HP / Keysight E4418B
E4418B EPM Series Single-Channel Power Meter
Description
The Agilent E4418B Power Meter is a low cost, high performance, dual channel, programmable power meter.
The Agilent E4418B is fully compatible with the 8480 series and the E-series power sensors (except the E9320A family).
Depending on which sensor is used, the E4418B can measure from -70 dBm to +44 dBm at frequencies from 9 KHz to 110 GHz.
The E4418B power meter was designed for bench and automatic test equipment use (ATE), that makes fast (up to 100 readings per second with E-series sensors), accurate and repeatable power measurements.
The Agilent E4418B is a true dual channel power meter, which means that you get two simultaneous power readings on the display.
The Agilent E4418B provides fast measurement speed (up to 200 readings per second, over the GPIB, with E-series sensors).
Key Points
Fast measurement speed (up to 200 readings per second, over the GPIB, with E-series sensors)
Speed improvement of x2 using the 8480 series power sensor (compared to the 437B)
No range-switching delays with 8480 series sensors, and only one fast-range switch point with E-series sensors
Code compatibility with 437B and 436A power meters
GPIB and RS232 connector for remote control of all functions
Internal rechargeable battery option provides up to 5.5 hours continuous use (option 001)
Specifications
Frequency Range: 9 kHz to 110 GHz, sensor dependent
Power Range: –70 dBm to +44 dBm (100 pW to 25 W), sensor dependent
Single Sensor Dynamic Range: 90 dB maximum
Power Output: 1.00 mW (0.0 dBm)
Accuracy: ±1.2% worst case
GPIB: Allows communication with an external controller
Input Voltage Range: 85 to 264 VAC, automatic selection
Input Frequency Range: 50 to 440 Hz
Power Requirement: approximately 50 VA (14 Watts)
Operating Temperature: 0 °C to 55 °C
Storage Temperature: -20 °C to +70 °C
Dimensions: 212.6 mm W x 88.5 mm H x 348.3 mm D (8.5 in x 3.5 in x 13.7 in)
Weight: Net - 4.0 kg (8.8 lb), Shipping - 7.9 kg (17.4 lb)
