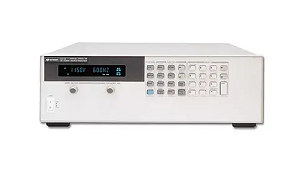

Agilent / HP / Keysight 6811B

6811B AC Power Source / Power Analyzer, 375 VA, 300 V, 3.25 A

Please help us customize your browsing experience, by selecting one the below.

Description

This is an AC Power Source / Power Analyzer, 375 VA, 300 V, 3.25 A. This unit is ideal for applications such as power supply testing, UPS testing, avionics ATE. Also for the testing of power factor corrected equipment and devices. This is made easy with the Graphical User Interface, that needs no programming. It will also protect your valuable prototypes and assemblies with the extensive set of protection features. It will save space on a lab bench or in a test rack with this flexible instrument, which can take the place of an AC source, DC source, a powerful arbitrary waveform generator, and a sophisticated power analyzer.

Key Points

AC and DC output capability

High-accuracy measurements

Built-in harmonic analysis capability

Arbitrary waveform generation

Compact single-phase

Built-in GPIB and RS-232 interface with SCPI programming

Includes Graphical User Interface and VXIplug&play drivers

Specifications

Output Ratings:
Power: 375VA
Voltage rms: 300V
Current rms: 3.25A
Repetitive & non-repetitive peak current: 40A

Output Frequency Range:
DC; 45Hz to 1KHz

Ripple & Noise (20KHz to 10MHz):
-60dB (relative to full scale)

Line & Load Regulation:
Line regulation (% of full scale): 0.1%
Load regulation (% of full scale): 0.5%
