Agilent / HP / Keysight E8356A

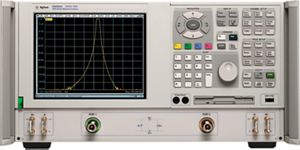

E8356A PNA Network Analyzer, 300 kHz to 3 GHz
Description
This analyzer is a member of the PNA Series network analyzer platform and provides the combination of speed and precision for the demanding needs of today's high performance component test requirements.
The PNA Series meets this testing challenge by providing the right combination of fast sweep speeds, wide dynamic range, low trace noise and flexible connectivity.
This unit TRL/LRM calibration (four receiver enabled) for in fixture and on wafer devices, standard bias tees for active devices and standard direct receiver access for extended dynamic range.
Powerful automation and self help tools make the instrument well suited for both R&D and manufacturing.
The PNA Series features sixteen independent measurement channels, built in hard drive and supplied mouse.
Key Points
COM/DCOM and SCPI programming
TRL/LRM calibration supported
USB controlled electronic calibration (ECal)
Source attenuators, bias-tees and direct receiver access standard
Windows 2000™ operating system
Specifications
Frequency Accuracy: +/- 2ppm
Frequency Range: 300KHz to 3GHz
Frequency Resolution: 1Hz
Output Power Range: 143dBm
Sweep Range: 0.01dB
Type: Vector Network Analyzer
