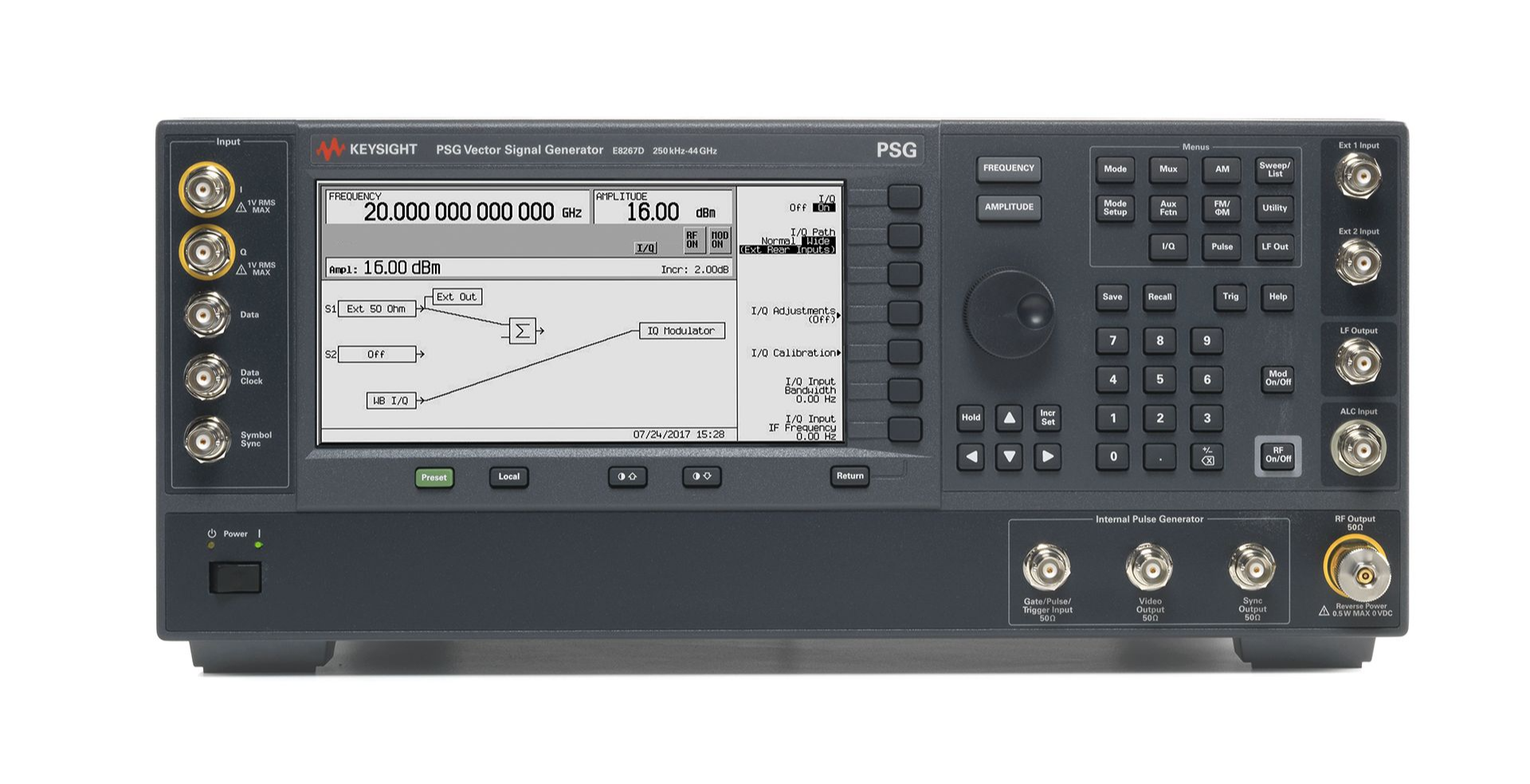

Agilent / HP / Keysight E8267D

E8267D PSG Vector Signal Generator, 100 kHz to 44 GHz

Note: Federal Resellers: We Do Not Sell New Equipment
Starting at:

$144,000.00

  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This unit is the industry's first integrated microwave vector signal generator with I/Q modulation up to 44GHz. It features an advanced wideband internal baseband generator capable of flexible arbitrary waveform playback or sophisticated real-time signal generation. The PSG also has a built-in wideband I/Q modulator that delivers up to 2 GHz RF modulation bandwidth and is a perfect complement to N6030A stand-alone wideband arbitrary waveform generator for I/Q waveform simulations up to 1 GHz RF bandwidth. This groundbreaking integrated vector functionality, only available in the E8267D PSG, drastically simplifies the generation of complex modulated signals for design and manufacturing test applications in aerospace, defense, satellite communications, and broadband wireless.

Key Points

Broad frequency ranges: 250 kHz to 20, 31.8, or 44 GHz with .001 Hz resolution

High output power - typical performance of +22 dBm at 20 GHz and +18 dBm at 40 GHz with excellent level accuracy

World-class SSB phase noise - typical performance of -115 dBc/Hz at 10 kHz offset from 10 GHz carrier

Wide RF modulation bandwidth - 160 MHz (standard) extendable up to 2 GHz using external I/Q inputs

Flexible digital & analog modulation - FSK, MSK, PSK, QAM, custom I/Q, AM, FM, ØM, and pulse

Multiple high rate sweep modes - step, list, & ramp sweep frequency and power

Advanced internal baseband generator - arbitrary I/Q waveform playback and real-time I/Q symbol generation with 80 MHz RF modulation bandwidth.

Wideband (1 GHz) waveform generator - use Agilent's N6030A arbitrary waveform generator to deliver high fidelity I/Q waveforms to the PSG's wideband external I/Q inputs for carrier frequencies to 44 GHz.

Signal creation software - generate radar test signals, multi-tone, noise power ratio, custom modulation, and more

Connectivity - remote control over 10BaseT LAN and GPIB using SCPI and IVI-COM drivers

External control using PSA Series spectrum analyzer – scalar network analysis capability when combined with any PSA with external source control option.

Backwards compatible - same form factor and completely code compatible with previous PSG signal generators

Specifications

Signal Characteristics:
250KHz to 20, 31.8, or 44GHz (.001Hz resolution)
+22dBm @ 20GHz and +18dBm @ 40GHz output power (typ)
160 MHz (extendable to 2GHz) RF modulation bandwidth

Modulation and Sweep: AM, FM, ØM, and pulse

ASK, FSK, MSK, PSK, QAM, custom I/Q

Step, list, and ramp sweep frequency and power

Source control using PSA Series spectrum analyzer

Baseband Generation and Signal Creation:
Internal baseband generator (80MHz RF BW): arbitrary waveform and real-time I/Q

Compatible with wideband (1GHz) N6030A arbitrary waveform generator

Create reference signals: radar, multi-tone, NPR, custom modulation, WLAN, and more - Signal Studio

Digital I/O, fading, and PC HDD waveform streaming - Baseband Studio

Automation and Communication Interface:
10BaseT LAN and GPIB
SCPI and IVI-COM drivers

Backwards compatible with all PSG signal generators.
