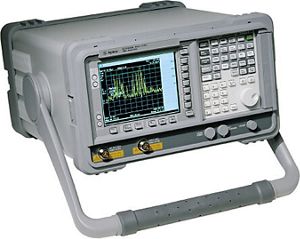

Agilent / HP / Keysight E7401A

E7401A EMC Analyzer, 9 kHz to 1.5 GHz

Please help us customize your browsing experience, by selecting one the below.

Description

The Agilent E7401A is a EMC Analyzer 9KHz to 1.5 GHz.

Key Points

Automatic EMI measurements
Compatible with the E7415A EMI software
Also compatible with the BenchLink Web Remote software
Log sweep
3.5" disk drive
5 minute warm-up
Built-in preamplifier
Optional tracking generator
Rugged, portable design

Specifications

Frequency Range:
* 50 ohms: 9 kHz to 1.5 GHz
Sweep Time:
* Span > 0 Hz: 1 ms to 4000 s
* Span = 0 Hz: 10 µs to 4000 s
* Option AYX: 50 ns to 4000 s
Resolution Bandwidth: 10 Hz to 3 MHz (-3 dB) in 1-3-10 sequence
Video Bandwidth Range: 30 Hz to 3 MHz in 1-3-10 sequence
