Agilent / HP / Keysight E5515B

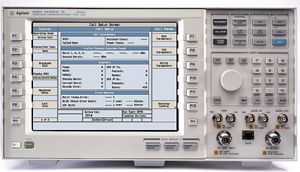

E5515B (8960 Series 10) Wireless Communications Test Set
Description
The Agilent E5515B hardware platform for the 8960 Series 10 wireless communication test set was developed for high-volume, automated mobile phone manufacturing test.
The proven 8960 wireless communications test set offers speed, accuracy, repeatability, multi-format capability, ease of programming, and format-flexible architecture. Recent additions to the 8960 extend its use into the design and development of wireless devices.
Use the new lab applications to verify and troubleshoot your wireless designs by using powerful protocol logging features in addition to the extensive parametric testing.
Key Points
Supports GSM, GPRS, EGPRS, TIA/EIA-136, and AMPS mobile phone testing
Software upgradeable
GPIB & LAN interface
Remotely controllable through GPIB interface
-127 to -10 dBm output
VSWR <1.14:1.400 to 1000 MHz
< +/-1.1 dB Level Accuracy
0-55C operating range
Specifications
Remote programming:
GPIB:IEEE Standard 488.2
GPIB help :pressing the front panel Help key and then any other key will cause the test set to display the GPIB syntax for that command at the bottom of the front panel display; pressing the Help key again exits this mode of operation
Remote front panel lockout:allows remote user to disable the front panel display to improve GPIB measurement speed
Implemented functions:T6, TE0, L4, LE0, SH1, AH1, RL1, SR1, PP0, DC1, DT0, C0, and E2
General specifications:
Dimensions (H x W x D):8.75 x 16.75 x 24.63 inches (222 x 426 x 625 mm), 7 rack spaces high
Weight:66 lbs (30 kg)
Display:10.5 inches (26.7 cm), active matrix, color, liquid crystal
LAN(local area network) port (for firmware upgrades and protocol logging only):RJ-45 connector, 10 base T Ethernet with TCP/IP support
Operating temperature:0 to +55 °C
Storage temperature:-20 to +70 °C
Power:100 to 240 Vac, 50 to 60 Hz, 550 VA maximum
Calibration interval:two years
EMI:conducted and radiated interference meets CISPR-11
Power consumption:typically 400 to 450 W continuous
