Agilent / HP / Keysight E4447A

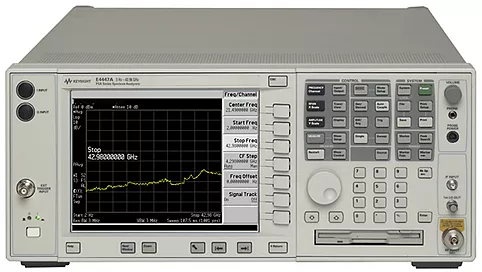

E4447A PSA Spectrum Analyzer, 3 Hz to 42.98 GHz

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This Spectrum Analyzer measures and monitors complex RF, microwave, and millimeter wave signals up to 42.98GHz. With optional external mixing, it is capable of measuring signals up to 325GHz. It offers high performance analysis for designers and production engineers of microwave and millimeter applications, including satellite and emerging digital communications, pulsed signals, and 3G wireless systems. Combined with Agilent's 89601A vector signal analysis software, this unit is also an indispensable tool for R&D engineers to evaluate and troubleshoot wireless and emerging communications formats.

Key Points

Typical performance @ 1 GHz: Dynamic range (-154 dBm DANL, +30 dBm TOI, -118 dBc/Hz phase noise at 10 kHz offset; Accuracy (±0.19 dB absolute amplitude accuracy, ±0.11 dB frequency response

Flexible platform with 16 optional, easy-to-use built-in measurement personalities

+/-0.19dB absolute amplitude accuracy

-154dBm displayed average noise level (DANL)

-118dBc/Hz phase noise at 10KHz offset

81dB W-CDMA ACLR dynamic range

Specifications

Residual FM: <(1HzxN)p-p in 1s

Amplitude Range DANL to maximum safe input level
