Agilent / HP / Keysight E4419B

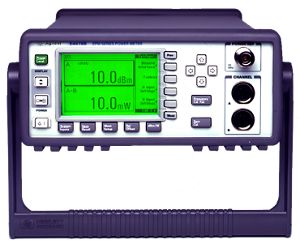

E4419B EPM Series Dual-Channel Power Meter
Description
The Agilent E4419B Power Meter is a low cost, high performance, dual channel, programmable power meter.
The Agilent E4419B is fully compatible with the 8480 series and the E-series power sensors (except the E9320A family).
Depending on which sensor is used, the E4419B can measure from -70 dBm to +44 dBm at frequencies from 9 KHz to 110 GHz.
The E4419B power meter was designed for bench and automatic test equipment use (ATE), that makes fast (up to 100 readings per second with E-series sensors), accurate and repeatable power measurements.
The Agilent E4419B is a true dual channel power meter, which means that you get two simultaneous power readings on the display.
Key Points
True dual-channel power meter - two simultaneous power readings.
Fast measurement speed (up to 100 readings per second, over the GPIB, with E-series sensors) .
Speed improvement of x2 using the 8480 series power sensor (compared to the 437B).
No range-switching delays with 8480 series sensors, and only one fast-range switching point with E-series sensors.
Code compatibility with 438A power meter,
GPIB and RS232 connector for remote control of all functions.
Internal rechargeable battery option provides up to 4 hours continuous use (option 001).
Code compatibility with 437B and 436A
Conformity to CE and CSA standards
Specifications
Frequency Range: 9 kHz to 110 GHz, sensor dependent
Power Range: –70 dBm to +44 dBm (100 pW to 25 W), sensor dependent
Single Sensor Dynamic Range: 90 dB maximum
Power Output: 1.00 mW (0.0 dBm)
Accuracy: ±1.2% worst case
GPIB: Allows communication with an external controller
Input Voltage Range: 85 to 264 VAC, automatic selection
Input Frequency Range: 50 to 440 Hz
Power Requirement: approximately 50 VA (14 Watts)
Operating Temperature: 0 °C to 55 °C
Storage Temperature: -20 °C to +70 °C
Dimensions: 212.6 mm W x 88.5 mm H x 348.3 mm D (8.5 in x 3.5 in x 13.7 in)
Weight: Net - 4.1 kg (9.0 lb), Shipping - 8.0 kg (17.6 lb)
