Agilent / HP / Keysight E4403B

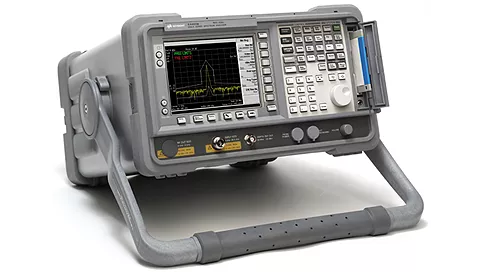

E4403B ESA-L Basic Spectrum Analyzer, 9 kHz to 3 GHz
Description
The HP / Agilent E4403B ESA-L Basic Analyzer, 9 kHz to 3.0 GHz provide basic general-purpose spectrum analysis for bench-top, manufacturing or service environments with the speed and accuracy you need. Selecting the Basic Analyzers results in the best value, fastest delivery, and most favorable price.
Key Points
1.1dB overall amplitude accuracy
100Hz to 5MHz RBW, 100Hz to 300Hz optional
+7.5dBm TOI
5 minute warm-up to guaranteed measurement accuracy
PC connectivity
Rugged design, weather resistant, snap on battery pack
Fastest sweep time for its class (4ms minimum)
Multiformat RF power measurement suite
Large, high-resolution, color display
Programming code compatibility to 8590 series spectrum analyzers
Free IntuiLink PC software for screen and data transfer to Microsoft® Office
BenchLink spectrum analyzer PC connectivity software
Remotely view and control ESA over the Internet
Worldwide support
Easy selection
Fast delivery
SCPI programming and IVI COM driver support
Specifications
Frequency Range:
BAS/BTG configuration:9 kHz to 3.0 GHz
Custom configuration:(75 ohm input option 1DP)1 MHz to 1.5 GHz
Aging rate: ±2 x 10-6/year
External reference: 10 MHz
Counter resolution:selectable from 1 Hz to 100 kHz
Frequency span:0 Hz (zero span), 100 Hz to maximum frequency range of the analyzer
Sweep time and trigger:
Accuracy (span = 0 Hz):±1%
Resolution bandwidths:
-3 dB:1 kHz to 5 MHz
-6 dB:9 kHz, 120 kHz
Range:
Span = 0 Hz:4 ms to 4000 s
Span > 100 Hz:4 ms to 4000 s
Video bandwidth:
Sequence:1-3-10
Range:30 Hz to 3 MHz
Amplitude Specifications:
Mechanical input attenuator range:0 TO 65 dB
Average continuous power:+30 dBm (1 W)
Peak pulse power:+50 dBm (100 W)
Frequency response (10 dB input attenuation):
Absolute 9 kHz to 3 GHz: ±0.5 dB
3 to 6.7 GHz :±1.5 dB
6.7 to 13.2 GHz:±2 dB
13.2 to 26.5 GHz:±2 dB
General Specifications:
Measurement speed:
Local measurement rate:>= 35/s
Remote measurement and GPIB transfer:>= 30/s
RF center freq tuning time:<= 90 ms
Temperature range:
Operating :0 to +55 ºC
Storage: –40 to +75 ºC
Disk drive :10 to +40 ºC
Military specifications Power requirements:
Standby:Power consumption < 5 W
AC operation on (line |):
90 to 132 V rms, 47 to 440 Hz
195 to 250 V rms, 47 to 66 Hz
Power consumption < 300 W
Dimensions:
Width to outside of instrument handle :416 mm (16.4 in)
Width to outside of the shipping cover :373 mm (14.7 in)
Overall height: 222 mm (8.75 in)
Depth from front frame to rear frame :409 mm (16.1 in)
Depth with instrument handle rotated horizontal:516 mm (20.3 in)
weight:
Instrument weight :15.5 kg (34.2 lbs)
Shipping weight:27.4 kg (60.4 lbs)
